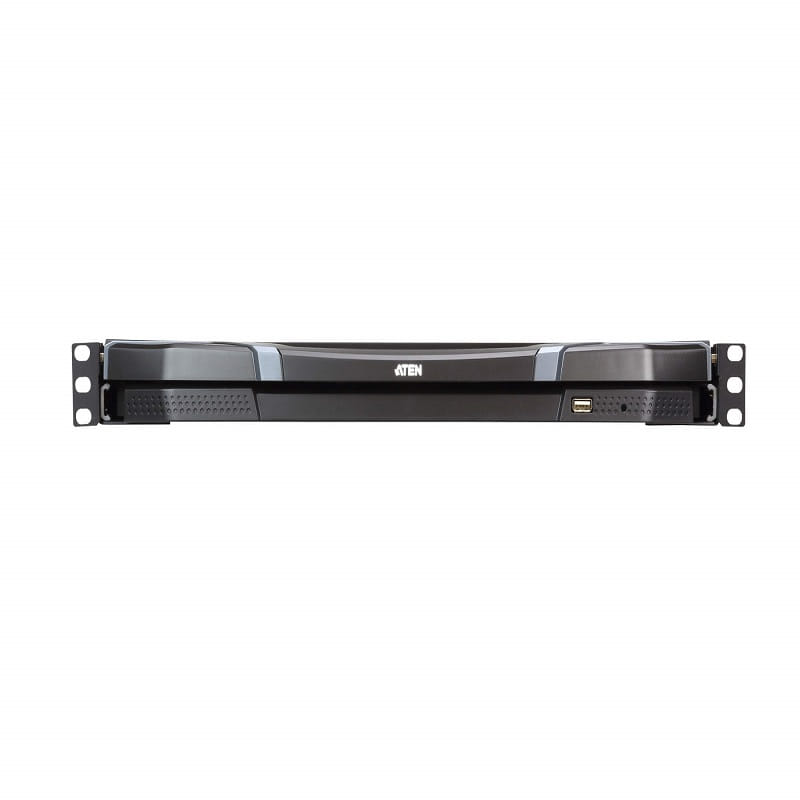

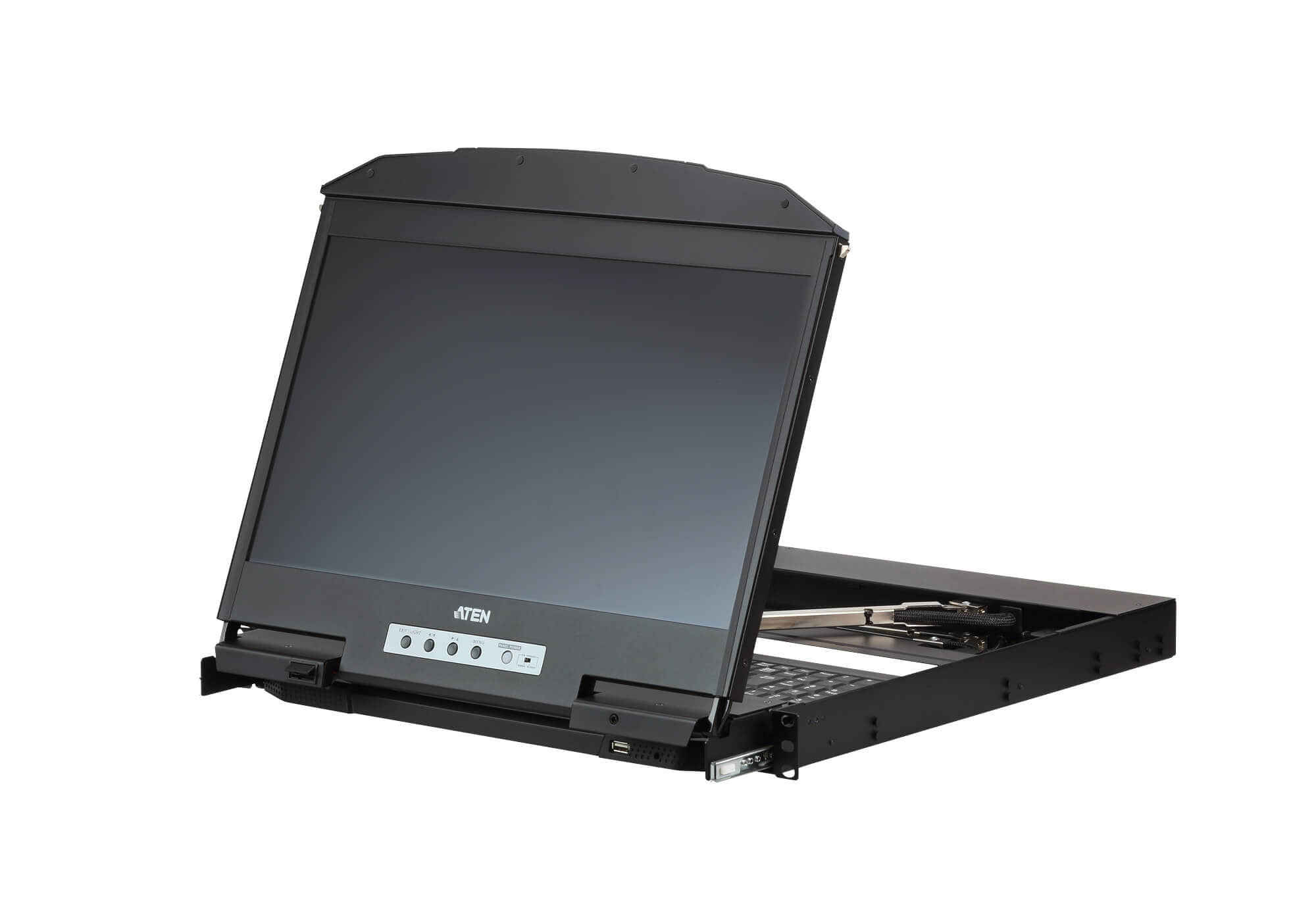

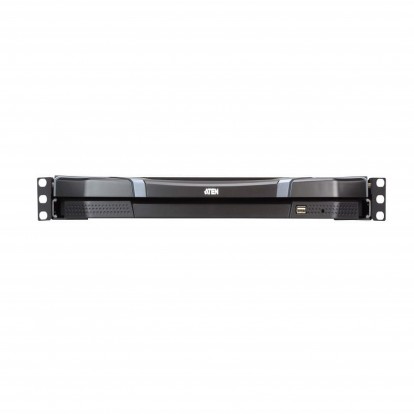

Ultra Short Depth Dual Rail WideScreen LCD Console (USB, HDMI / DVI / VGA)

Ultra Short Depth Dual Rail WideScreen LCD Console (USB, HDMI / DVI / VGA)

Product Code : CL3800

Brand Category : LCD KVM Switches / Consoles

Description

"

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
    • Console lock – enables the console drawer to remain securely locked away in position when not in use
    • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3800 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*




  • Remarkable Audio/Video Experience
    • Support three types of video inputs – HDMI, DVI, and VGA*
    • The 18.5"" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3800NW and resolutions of up to 1366 x 768 @ 60Hz for CL3800NX
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz
    • Audio support for connecting speakers




  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options**
    • No software required
    • Firmware upgradable
    • Supports hot-plugging




  • Reliability and Operational Versatility
    • Supports an external console with USB / HDMI / DVI / VGA connectors*
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard

      * Only one video signal (HDMI, DVI-D, or VGA) can be displayed at time.

      More information about ""Easy Rack Mounting""...

"

Add to Query Cart PDF Download

Technical Specification

Function CL3800NW CL3800NX
Computer Connections
Direct 1 1
Console Selection Hotkey Hotkey
Connectors
KVM Ports 1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)		 1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14 1 x IEC 60320/C14
External Console Ports 1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)		 1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral 1 x USB Type A Female (Front) 1 x USB Type A Female (Front)
Switches
Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Power 1 x Rocker Switch 1 x Rocker Switch
LCD Control 4 x Pushbutton 4 x Pushbutton
LCD Power 1 x LED Pushbutton 1 x LED Pushbutton
LEDs
Power 1 x KVM Console (Dark Green)
1 x LCD (Orange)		 1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 18.5" TFT-LCD 18.5" TFT-LCD
Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60 Hz
Response time 20 ms 5 ms
Viewing Angle 178° (H), 178° (V) 170° (H), 160° (V)
Pixel Pitch 0.213 mm x 0.213 mm 0.3 mm x 0.3 mm
Support Color 16.77M colors 16.77M colors
Contrast Ratio 1000 : 1 1000 : 1
Luminance 350 cd/m⊃2; 250 cd/m⊃2;
Video
Input Video Resolution up to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2B		 up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / Mouse USB USB
Maximum Input Power Rating 100–240V AC; 50–60Hz; 1A 100–240V AC; 50–60Hz; 1A
Power Consumption AC110V:26.6W:140BTU
AC220V:26.8W:141BTU		 AC110:18.3W:101BTU
AC220:17.8W:98BTU
Environmental
Operating Temperature 0-40°C 0-40°C
Storage Temperature -20-60°C -20-60°C
Humidity 0 - 80% RH, Non-condensing 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic Metal + Plastic
Rail Type Dual Rail Dual Rail
Weight 9.61 kg ( 21.17 lb ) 9.79 kg ( 21.56 lb )
Dimensions (L x W x H) 48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)		 48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)
Body Dimensions(L x W x H) 44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)		 44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)
Note Body Dimensions exclude I/O ports, handles, and mounting brackets. Body Dimensions exclude I/O ports, handles, and mounting brackets.
