Product Code : L420

Brand Category : Control remote units


Description

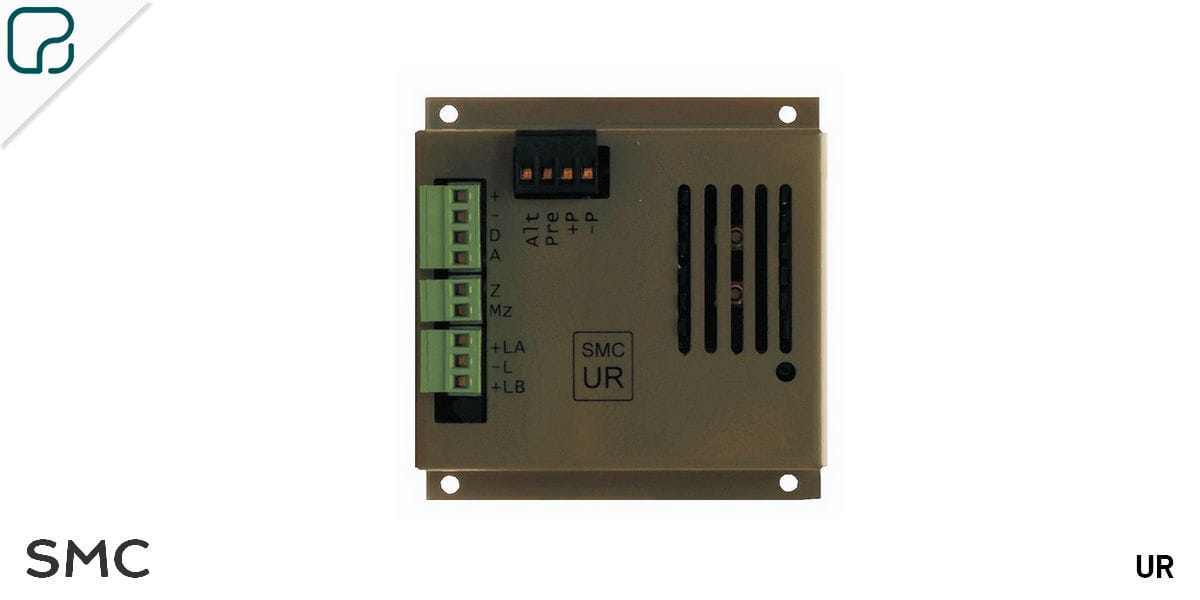

Control remote unit for 1 zone with audio control

Control electronics that establishes communication of audio + data between the centrals, the call and signalling devices of the system and the audio modules, with amplification and transmission volume adjustment from the central. Models available to control a series of mechanisms (a room) or four units (four rooms).


Add to Query Cart PDF Download


Technical Specification


Power supply Consumption (rest/max.) Capacity

Central connection

Local connection buttons Local connection lamps Local audio connection Dimensions (mm)

Finish



24 Vdc

24 Vdc

25 mA/230 mA

45 mA/230 mA

1 set of devices

4 sets of devices

5-line SMC bus

5-line SMC bus

2 x 0.5 mm2, max. 20 m

2 x 0.5 mm2, max. 20 m

3 x 0.5 mm2, max. 20 m

3 x 0.5 mm2, max. 20 m

4 x 0.5 mm2 + display, (20 m)

4 x 0.5 mm2 + display, (20 m)

102 x 102 x 23

165 x 120 x 23

grey metal

grey metal
