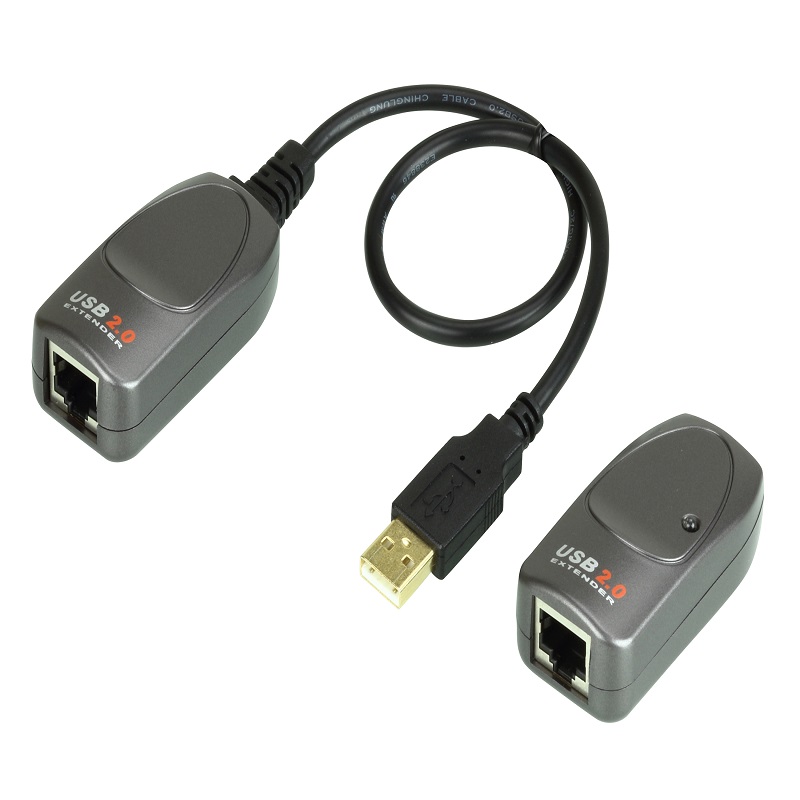

USB 2.0 Cat 5 Extender (up to 60m)

USB 2.0 Cat 5 Extender (up to 60m)

Product Code : UCE260

Brand Category : Extenders

Description

  • Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
  • Extends signal transmission distance of a USB devices up to 60m via an Ethernet Cable
  • Includes an AC adapter to stabilize power supply
  • Hot-Pluggable
  • The most cost-effective USB extender solution
  • No additional software driver required

Add to Query Cart PDF Download

Technical Specification

FunctionLocal UnitRemote Unit
Connectors
USB Port1 x USB Type A Male1 x USB Type A Female
Link1 x RJ45 Female1 x RJ45 Female
PowerN/A1 x DC Power Jack
USB Specification2.0 For High / Full / Low Speed2.0 For High / Full / Low Speed
USB Devices SupportedN/A1 Device
【Note】Please verify the compatibility of the USB video device with the manufacturer.
Power ConsumptionDC5V:0.65W:3BTUDC5V:0.95W:15BTU
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingPlasticPlastic
Weight0.04 kg ( 0.09 lb )0.02 kg ( 0.05 lb )
Dimensions (L x W x H)6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)		6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)
