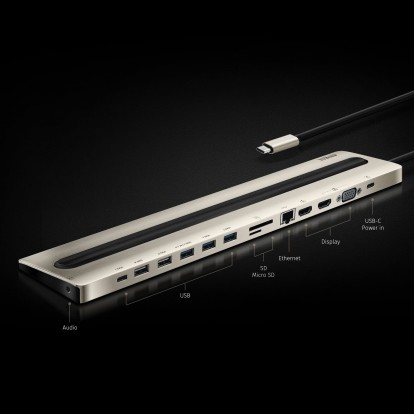

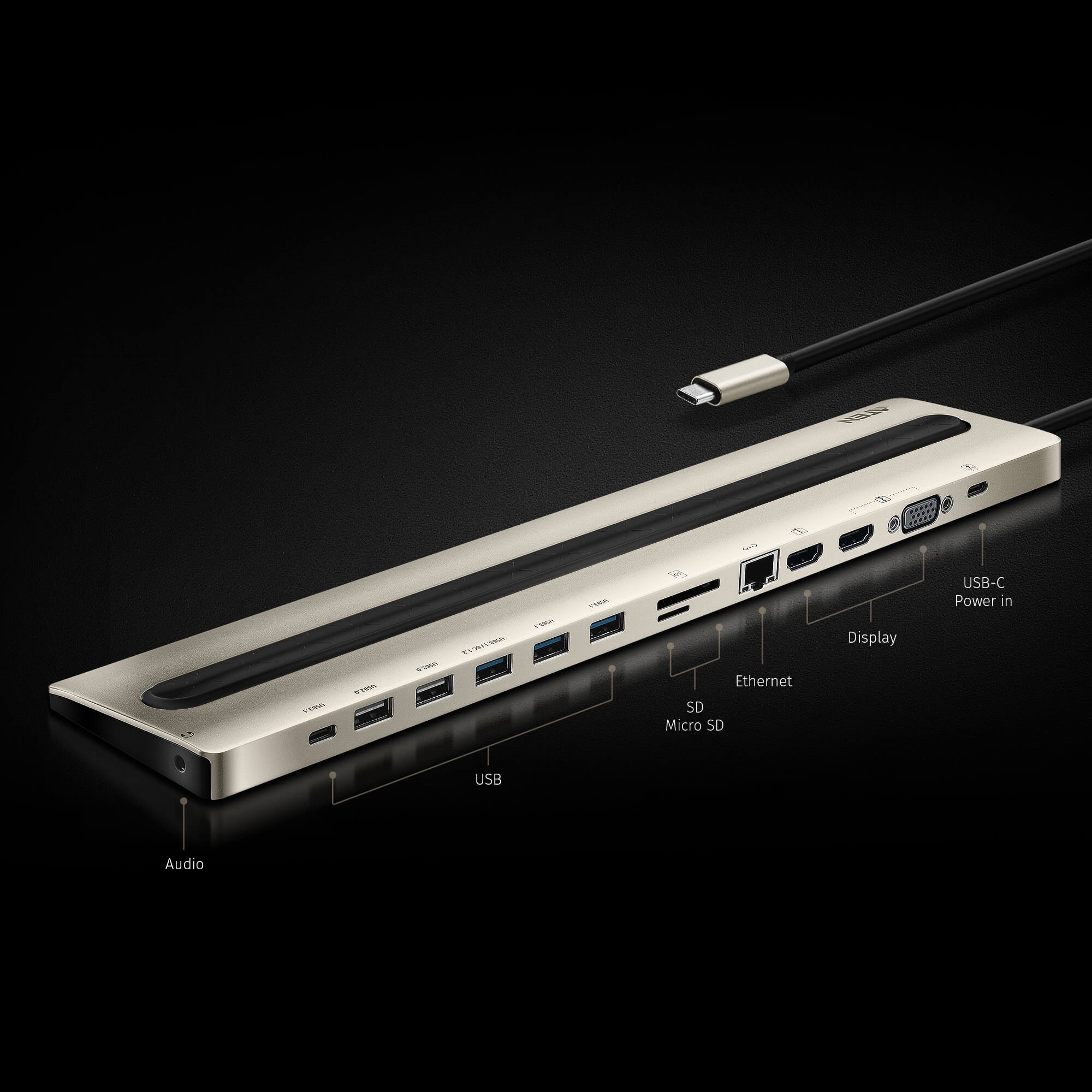

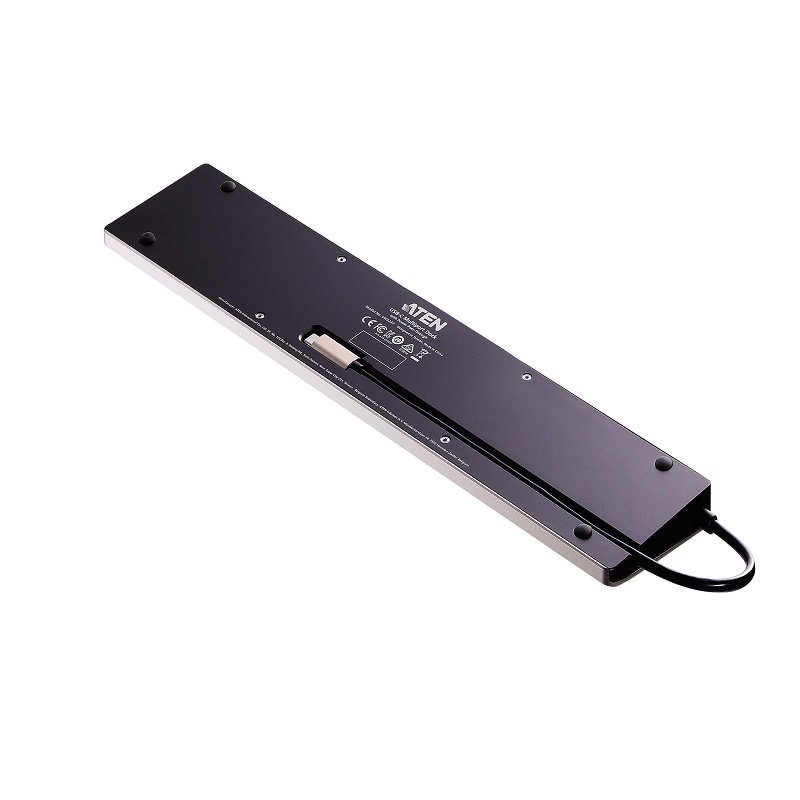

USB-C Multiport Dock with Power Pass-Through

Product Code : UH3237

Brand Category : Docks and Switches

Description

Expands up to 13 devices instantly through a USB-C cable
Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via USB-C PD power adapter – power profiles include 5V, 9V, 12V, 15V, 20V
Supports single display output resolution up to 4K@30 (3840x2160@30Hz) on a single HDMI or dual display output at 1080p (1920 x 1080 @ 60Hz)
1 x USB 3.2 Gen 1 Type-A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for fast-charging device
1 x USB 3.2 Gen 1 Type-C data port for latest USB-C device
Stylish and ultra slim design allows user to place a 15” laptop directly on the top of the docking station and save more desk space*
Enhanced EMI protection by increasing the cable braid density and adding conductive foam
Built-in memory card readers (SD/MMC/Micro SD)
Works with all major operating systems: Windows®, OS X®, and iPad Pro
Compatible with Thunderbolt 3 (USB-C)
3.5mm Stereo 4-Pole Audio Jack with Microphone
Gigabit Ethernet
Apple M1 chip compatible

*Fits 13”~15” laptop with a USB-C port on the left side.

Technical Specification

Computer Connections	1
Connectors
Computer	30 cm USB 3.1 Gen1 Type-C tethered cable
Device	2 x USB 2.0 Type-A Female (Black)* 3 x USB 3.2 Gen 1 Type-A Female (Blue)* 1 x USB 3.2 Gen 1 Type-C Female (Data Only)* *The total output of 6 USB Ports is max. 5V, 10W.
Video Output	2 x HDMI Female 1 x VGA Female
LAN Ports	1 x Gigabit Ethernet Female (Black)
Audio	1 x 3.5mm stereo 4-pole microphone and headphone jack
Power	1 x USB Type-C Female* * Supports USB Power Delivery 3.0 for charging up to 85W, power profiles includes 5V, 9V, 12V, and 20V. * For device charging, a Limited Power Source (LPS) certiﬁed single port USB-C PD power adapter over 65 Watt is recommended. * The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W.
Performance
Flash Memory	1 x SD Card Slot (SD/SDHC/SDXC) 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G)
Video Resolution	Single View: HDMI - 3840x 2160@30hz or VGA -1920 x 1080@60hz Dual View: 2 x HDMI – 1920 x 1080@60hz For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
Power Consumption	DC5V:15W:66BTU
System Requirements	Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer iPadOS 13.1 and above, iPad Pro (USB-C)* *iPad Pro only supports single view in mirror mode
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Top Cover – Aluminum Bottom Panel - Plastic
Weight	0.37 kg ( 0.81 lb )
Dimensions (L x W x H)	35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.)
