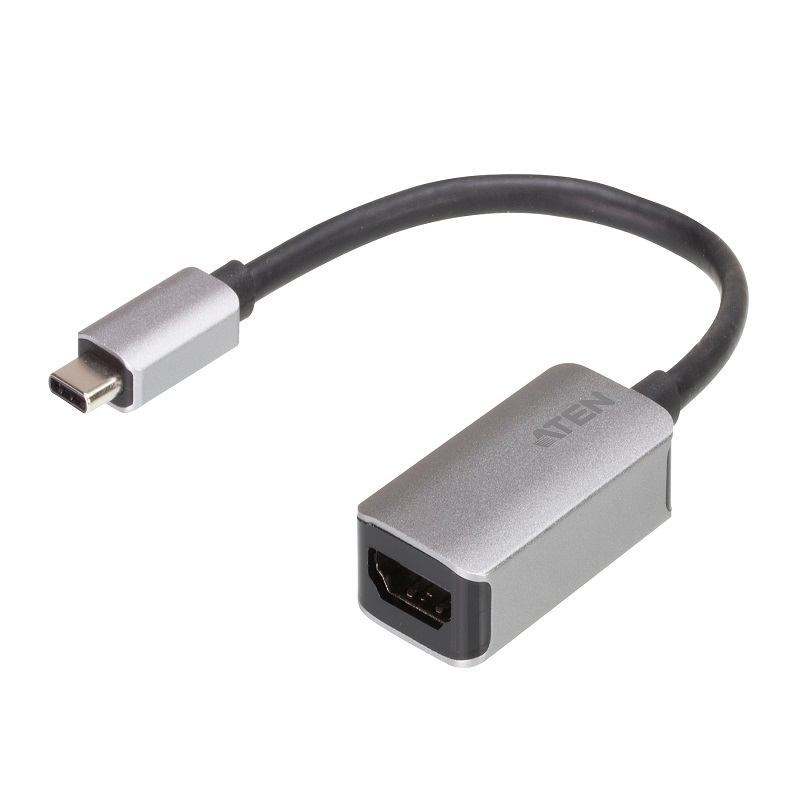

USB-C to 4K HDMI Adapters

Product Code : UC3008A1

Brand Category : Converters

Description

Transfers high-quality video from a USB-C enabled laptop or smartphone to a HDMI 4K@60Hz (4096 x 2160@60Hz) display, TV or projector*
Premium casing can resists signal interference during video transmission and heat insulation
Compact and lightweight design
Works with all major operating systems: Windows®, OS X®, iPad Pro and Android
Plug and Play – no software required
Compatible with Thunderbolt 3 (USB-C)

* With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.

Technical Specification

Video Input
Interfaces	15.4 cm USB 3.2 Gen1 Type-C Cable
Video Output
Interfaces	1 x HDMI Female
Video
Max. Pixel Clock	594MHZ
Max. Resolution	4096 x 2160@60Hz
Compliance	USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) HDMI 2.0 HDCP 2.2 USB Billboard Device Class
Audio
Output	1 x HDMI Female
Power Consumption	DC5V:1W:5BTU
System Requirements	Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.02 kg ( 0.04 lb )
Dimensions (L x W x H)	4.32 x 1.10 x 2.20 cm (1.7 x 0.43 x 0.87 in.)
