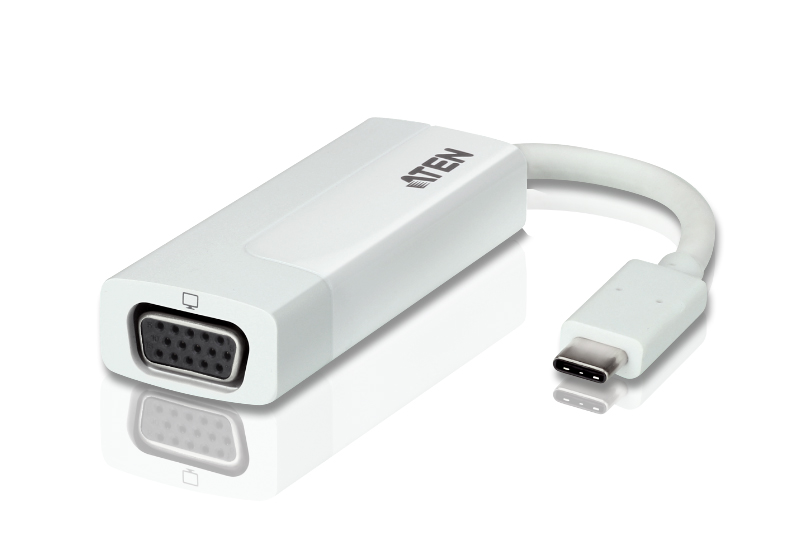

USB-C to VGA Adapter

Product Code : UC3002

Brand Category : Converters

Description

Transfer high-quality videos from a USB-C equipped laptop or tablet to a VGA display or projector
Compatible with the latest USB-C equipped laptops and tablet computers including Apple MacBook, Chromebook Pixel™ and Thunderbolt™ 3 computers
USB billboard feature proactively notifies users of alternate USB-C modes supported by the source device
Premium manufacturing and high-quality design resists signal interference during video transmission
Plug-and-Play – no software required
Works with all major operating systems: Windows®, OS X®, and i-Pad Pro*

*Support iPad Pro video output and USB keyboard only

Technical Specification

Video Input
Interfaces	1 x USB-C Male (White)
Video Output
Interfaces	1 x HDB-15 Female (Black)
Video
Max. Pixel Clock	200 MHz
Max. Resolution	2048*1152@60Hz
Compliance	USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible), USB Billboard Device Class, HDCP 1.3
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.03 kg ( 0.07 lb )
Dimensions (L x W x H)	7.00 x 2.70 x 1.50 cm (2.76 x 1.06 x 0.59 in.)
