USB-C Travel Dock with Power Pass-Through

Product Code : UH3238

Brand Category : Docks and Switches

Description

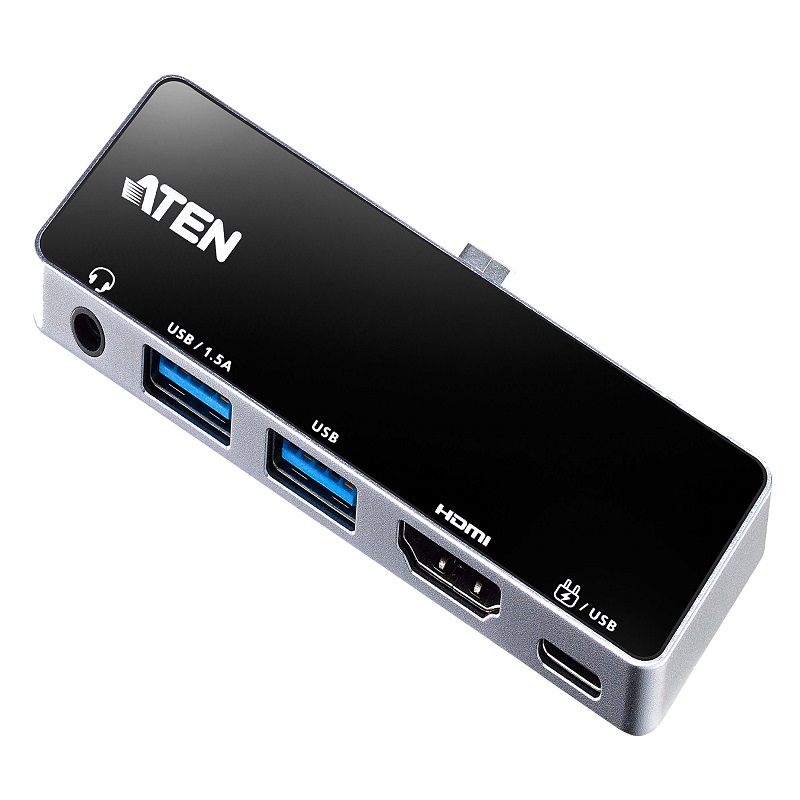

5-in-1 travel dock that includes one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port
Supports USB PD 3.0 for charging up to 92W via USB-C PD power adapter – power profiles include 5V, 9V, 15V, 20V
Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Plug and Play – no drivers needed
Works with all major operating systems: Windows®, macOS X, iPad Pro (USB-C), and Android
Compatible with Thunderbolt™3 (USB-C)
Compact, lightweight design for mobile workstation
Apple M1 chip compatible

Technical Specification

Computer Connections	1
Connectors

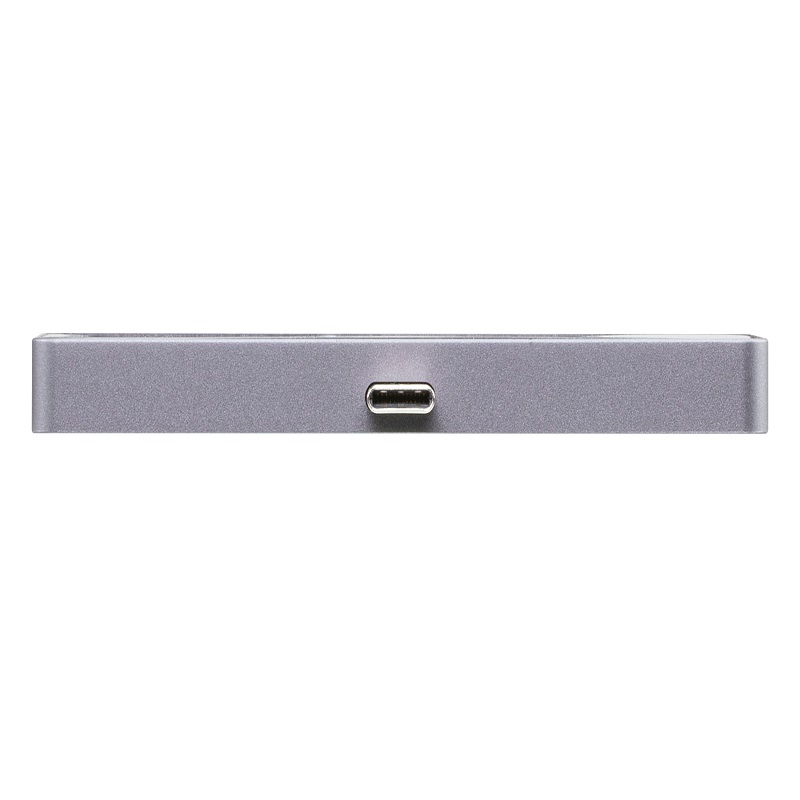

Computer	USB 3.2 Gen 1 Type-C
Device	1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)* 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)* 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)* a. 2 x USB-A ports share total 5V, 9W when UH3238 powered by external USB-C PD power adapter b. 2 x USB-A and 1 x USB-C ports share total 5V, 7.5W when UH3238 powered by iPad via USB-C . *c. 2 x USB-A and 1 x USB-C ports share total 5V, 12.5W when UH3238 powered by PC via USB-C. (@5V,3A bus-powered)
Video Output	1 x HDMI Female (Black)
Audio	1 x 3.5mm stereo 4-pole microphone and headphone jack
Power	1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)* *Support Power Delivery 3.0 for laptop charging up to 92W, power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed)
Video Resolution	3840 x 2160@60Hz* * To get max bandwidth, upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitation
Power Consumption	DC5V:8WBTU
System Requirements	Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer iPadOS 13.1 and above, iPad Pro (USB-C) Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.04 kg ( 0.1 lb )
Dimensions (L x W x H)	9.00 x 3.20 x 0.82 cm (3.54 x 1.26 x 0.32 in.)
