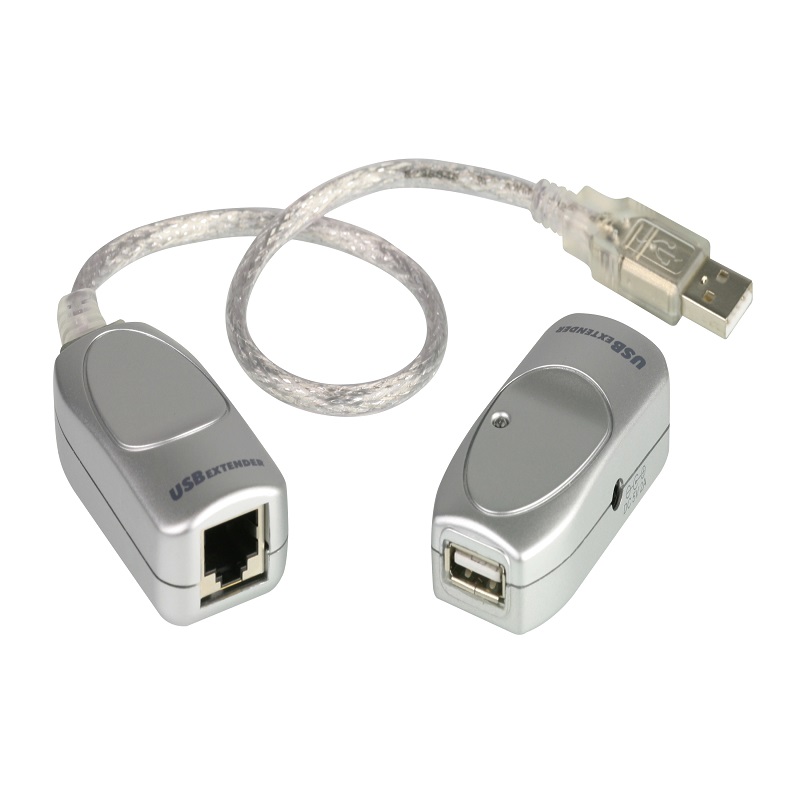

USB Cat 5 Extender (up to 60m)

USB Cat 5 Extender (up to 60m)

Product Code : UCE60

Brand Category : Extenders

Description

  • USB 2.0 full speed compliant
  • Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices
  • Extends the transmission distance of a USB device up to 60m (198 ft) using Ethernet Cable
  • Embedded USB Transceivers prevent signal loss
  • Lowest cost solution for extending USB signals
  • No additional installation software required
  • LED indicates when additional external power supply needed
  • Multiplatform support: Windows, Mac

Add to Query Cart PDF Download

Technical Specification

FunctionLocal UnitRemote Unit
Connectors
USB Port1 x USB Type A Male (White)1 x USB Type A Female (White)
Link1 x RJ-45 Female1 x RJ-45 Female
PowerN/A1 x DC Jack (Optional)
USB Specification2.0 Full / Low Speed2.0 Full / Low Speed
Environmental
Operating Temperature0–40˚C0–40˚C
Storage Temperature-40–85˚C-40–85˚C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingPlasticPlastic
Weight0.03 kg ( 0.09 lb )0.02 kg ( 0.05 lb )
Dimensions (L x W x H)6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)		6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)
