USB DVI Cat 5 KVM Extender (1024 x 768@60m)

Product Code : CE600

Brand Category : KVM EXTENDER

Description

Local and Remote Units connect at distances up to 60 m using Cat 5e cable
Allows access to a computer or KVM installation from a remote console (up to 60 m)
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
Audio Enabled – supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Firmware upgrade

Technical Specification

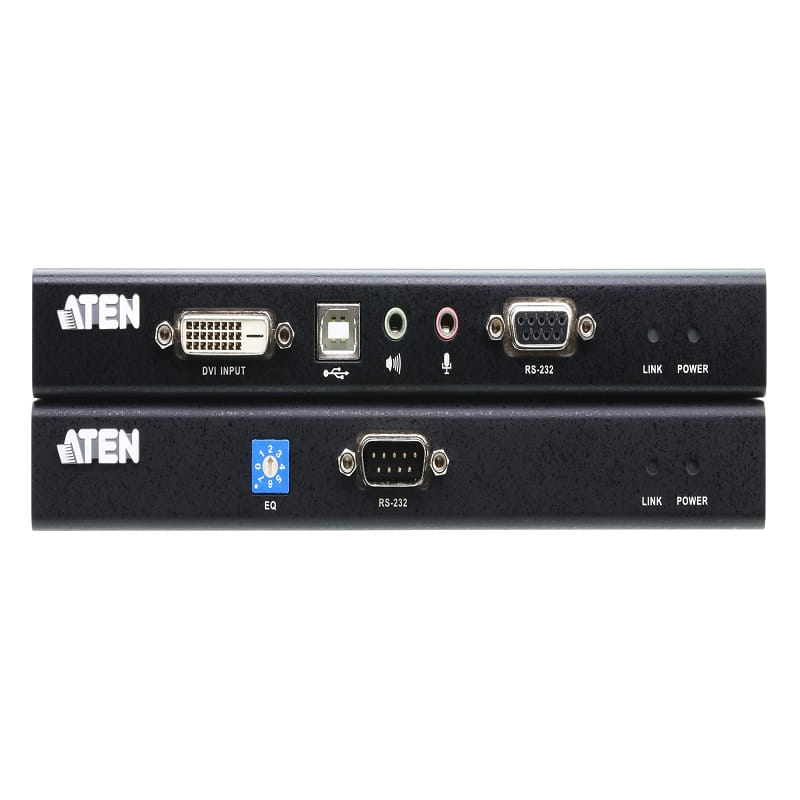

Function	CE600L	CE600R
Connectors
Console Ports	N/A	2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports	1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B Female (White)	N/A
RS-232	1 x DB-9 Female (Black)	1 x DB-9 Male (Black)
Power	1 x DC Jack	1 x DC Jack
Sub / Main	2 x RJ-45 Female (Black)	2 x RJ-45 Female (Black)
LEDs
Link	1 (Green)	1 (Green)
Power	1 (Green)	1 (Green)
Switches
EQ Switch	N/A	1 x 8-position switch
Firmware Upgrade	1 x Slide Switch	N/A
Emulation
Keyboard / Mouse	USB	USB
Video	1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m);	1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m);
Power Consumption	DC5.3V:1.92W:13BTU	DC5.3V:1.69W:12BTU
Environmental
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Humidity	0–80% RH, Non-condensing	0–80% RH, Non-condensing
Physical Properties
Housing	Metal	Metal
Weight	0.48 kg ( 1.06 lb )	0.48 kg ( 1.06 lb )
Dimensions (L x W x H)	20.20 x 8.54 x 2.50 cm (7.95 x 3.36 x 0.98 in.)	20.20 x 8.50 x 2.50 cm (7.95 x 3.35 x 0.98 in.)
