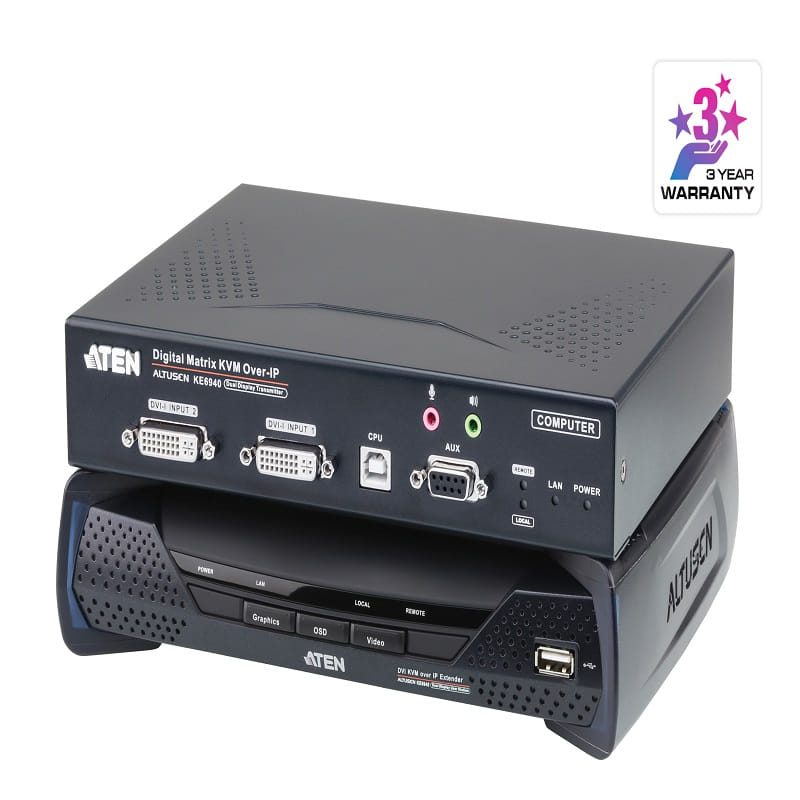

USB DVI-I Dual Display KVM Over IP Extender

Product Code : KE6940

Brand Category : KVM EXTENDER

Description

ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX - automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
High speed USB Storage Transmission support
Hot pluggable
Rack Mountable
Upgradeable firmware
An industrial-grade power adapter included – supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions

Technical Specification

Function	KE6940R	KE6940T
Power Consumption	DC5V:9.53W:70BTU	DC5V:8.91W:42BTU
Environmental
Humidity	0–95% RH, Non-condensing	0–95% RH, Non-condensing
Operating Temperature	0–50°C	0–50°C
Storage Temperature	-20–60°C	-20–60°C
Physical Properties
Housing	Metal	Metal
Weight	1.25 kg ( 2.75 lb )	1.15 kg ( 2.53 lb )
Dimensions (L x W x H)	22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.)	21.50 x 16.29 x 4.18 cm (8.46 x 6.41 x 1.65 in.)

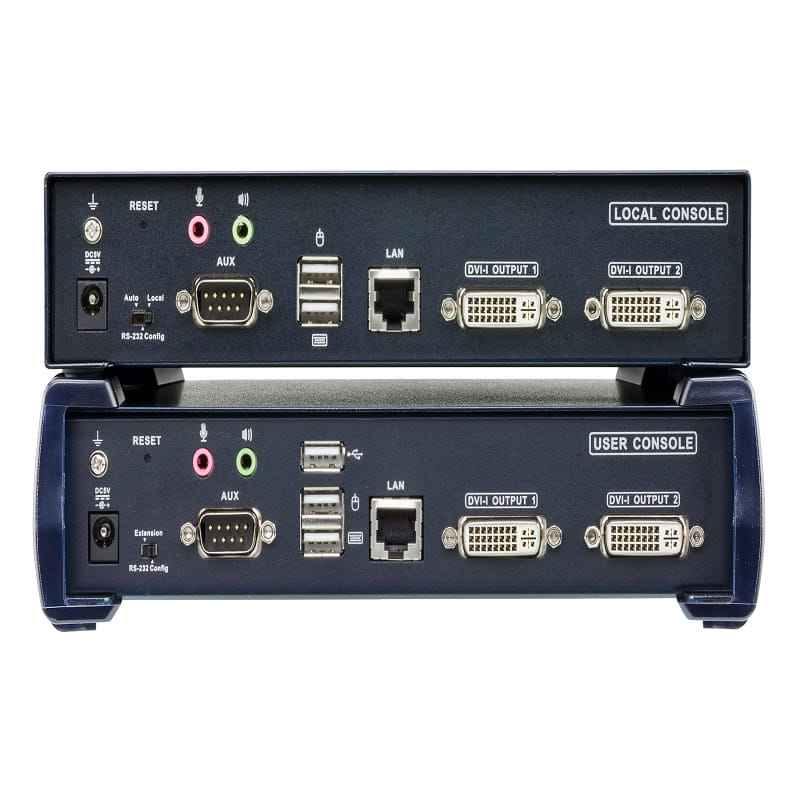

Connectors
USB Port	2 x USB Type A Female (White)	N/A
Console Ports	2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)	2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
KVM Ports	N/A	1 x USB Type B Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
Power	1 x DC Jack (Black)	1 x DC Jack (Black)
LAN Ports	1 x RJ-45 (Black)	1 x RJ-45 (Black)
Switches
OSD	1 x Pushbutton	N/A
Video	1 x Pushbutton	N/A
Graphics	1 x Pushbutton	N/A
Reset	1 x Semi-recessed Pushbutton	1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps	1 (Green / Orange)	1 (Green / Orange)
Power	1 (Blue)	1 (Blue)
Local	1 (Green)	1 (Green)
Remote	1 (Green)	1 (Green)
Emulation
Keyboard / Mouse	USB	USB
Video Resolution	Up to 1920 x 1200 @ 60Hz	Up to 1920 x 1200 @ 60Hz
