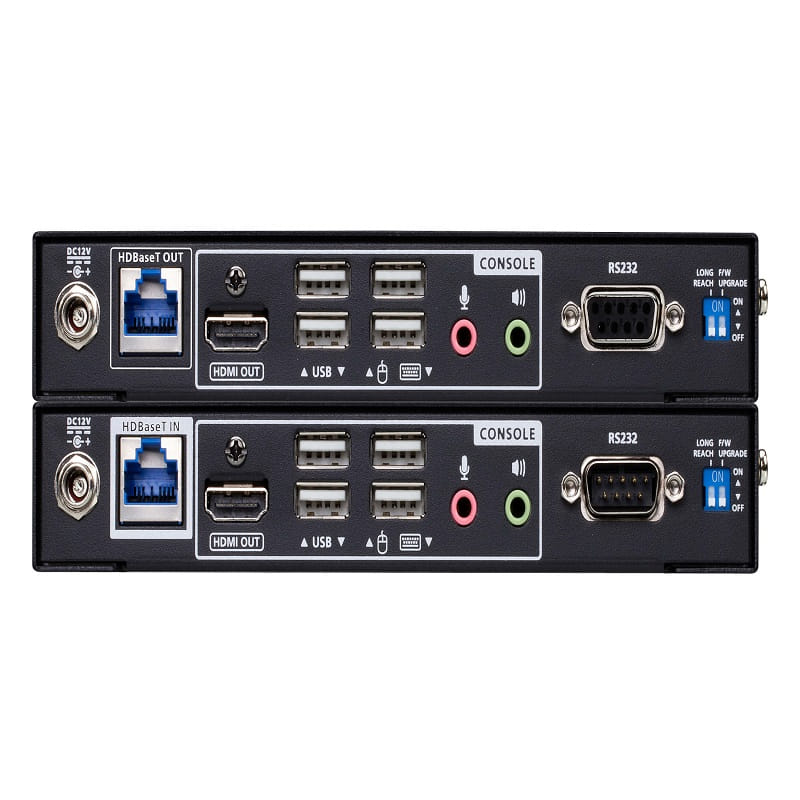

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)

Product Code : CE840

Brand Category : KVM EXTENDER

Description

"

  • HDBaseT 3.0 – supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above with no compression and zero latency
  • Superior video quality – supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
  • Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
  • Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
  • Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
  • Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • HDCP2.3 and 2.2 compliant
  • Supports widescreen formats
  • Built-in 8KV/15KV ESD protection
  • Firmware upgradable
  • No software or driver installation required
  • Rack-mountable

"

Add to Query Cart PDF Download

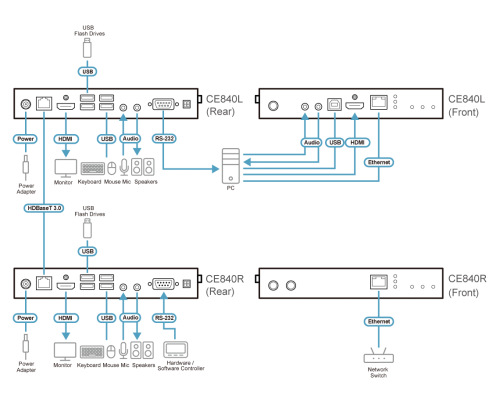

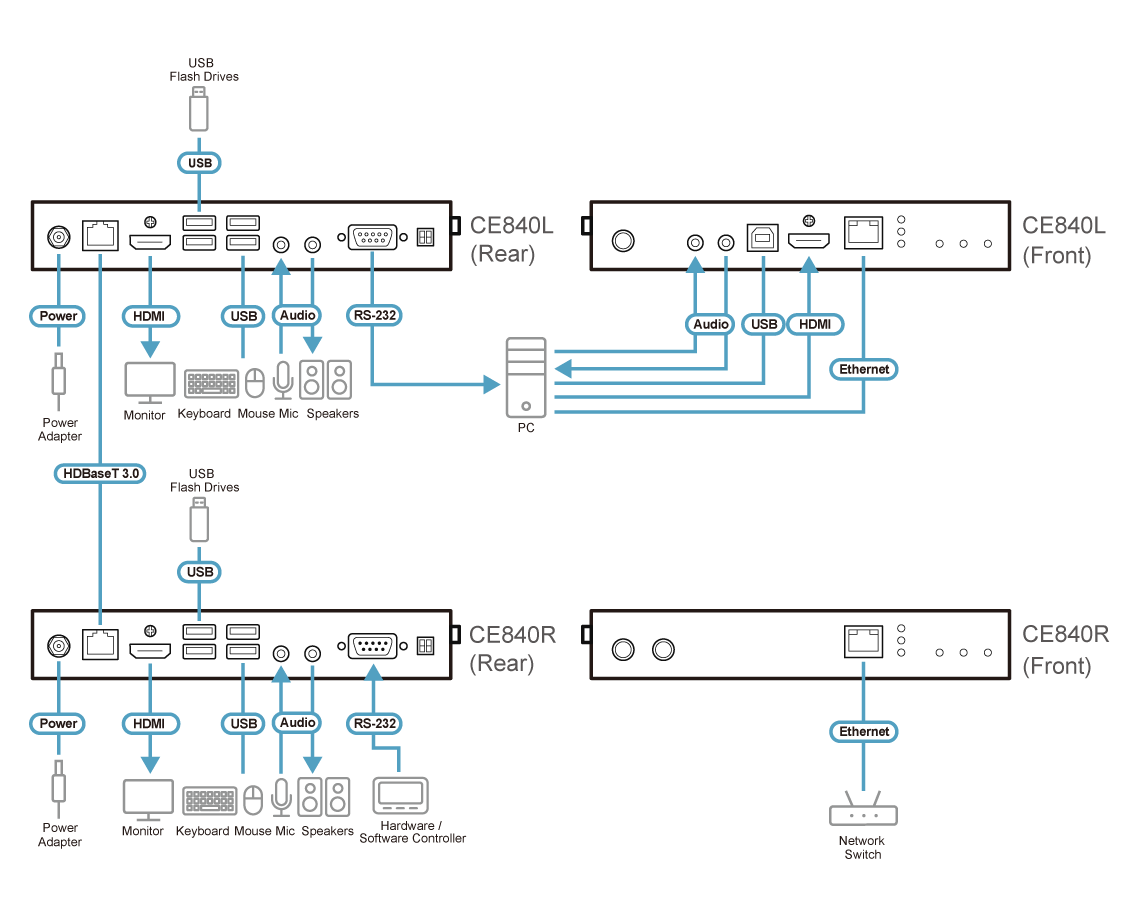

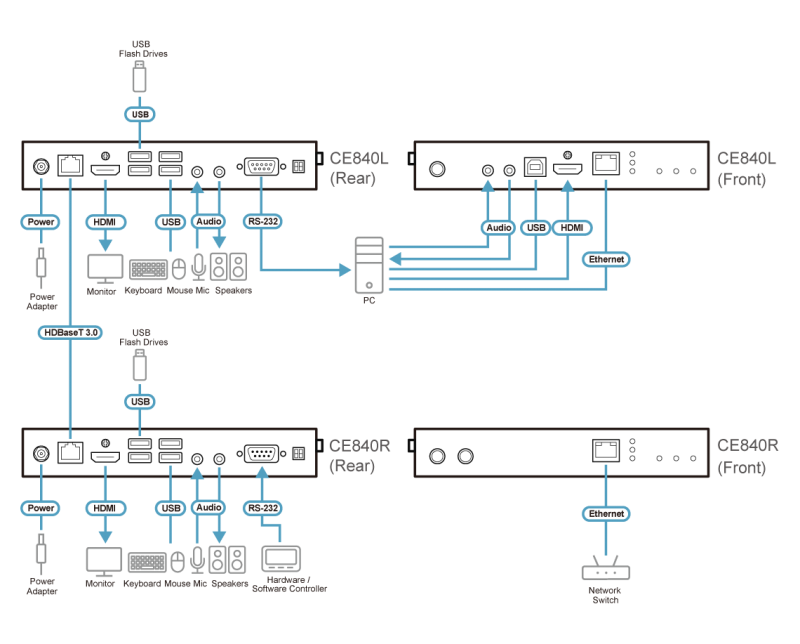

Technical Specification

Function CE840L CE840R
Connectors
Console Ports 1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)

* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match		 1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)

* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
KVM Ports 1 x HDMI (Female, Black)
1 x USB Type B (Female, White)
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)		 N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black, HDBaseT) 1 x RJ-45 Female (Black, HDBaseT)
Video
Max. Data Rate 18Gbps (6Gbps per lane) 18Gbps (6Gbps per lane)
Max. Pixel Clock 600 MHz 600 MHz
Compliance HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)*

*The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.		 HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)
Max. Resolution 4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)		 4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)
Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)

4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)		 4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)

4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video 1 x HDMI IN (Orange) 1 x HDMI OUT (Orange)
Console Status 3 x Local USB Keyboard/Mouse Authority Indicator (Green) 3 x Remote USB Keyboard/Mouse Authority Indicator (Green)
Switches
Long Reach Mode Switch 1 x Slide Switch (Reserved) 1 x Slide Switch (Reserved)
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup button N/A 1 x Pushbutton
Operating Mode Selection 1 x Local USB Keyboard/Mouse Authority switch 1 x Remote USB Keyboard/Mouse Authority switch
Power Consumption DC12V:7.36W:60BTU DC12V:7.37W:60BTU
Environmental
Operating Temperature 0-40˚C 0-40˚C
Storage Temperature -20-60˚C -20-60˚C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.82 kg ( 1.81 lb ) 0.81 kg ( 1.78 lb )
Dimensions (L x W x H) 17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)		 17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)
Note Long reach mode reserved for future improvement Long reach mode reserved for future improvement
