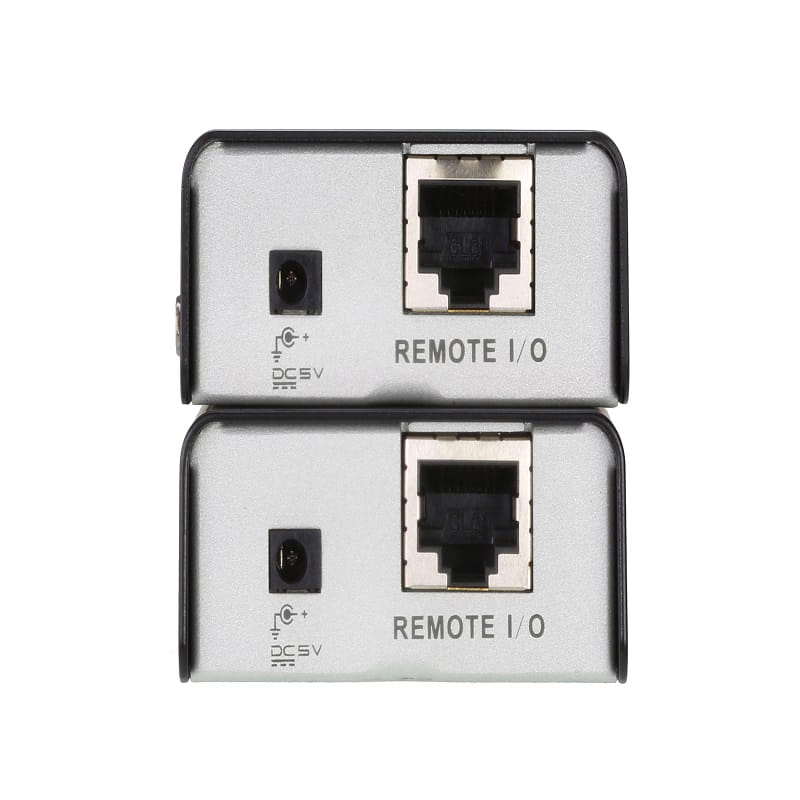

USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

Product Code : CE100

Brand Category : KVM EXTENDER

Description

"

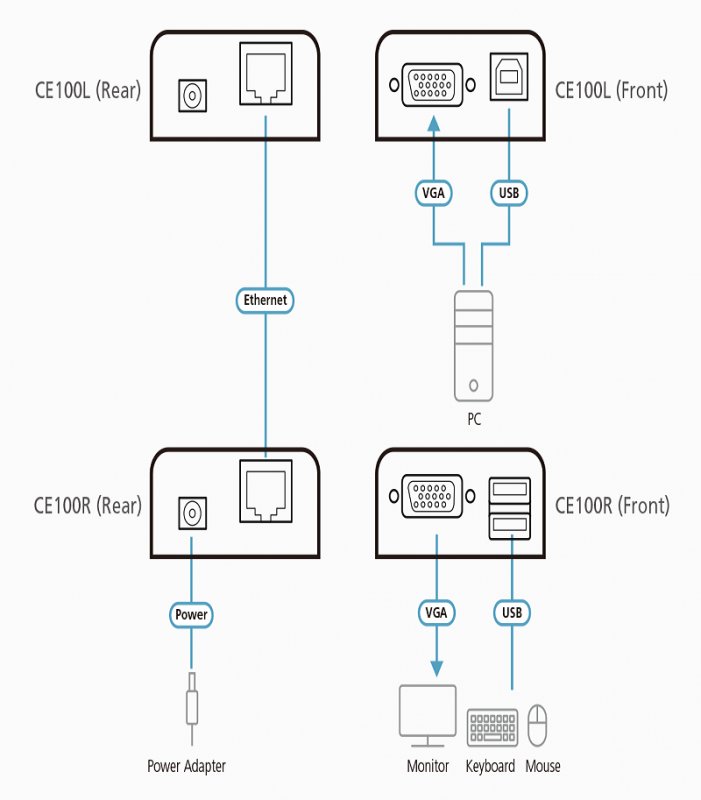

  • Extends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality – up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable

"

Add to Query Cart PDF Download

Technical Specification

"

Function CE100L CE100R
Connectors
Console Ports N/A 2 x USB Type A Female (White)
1 x HDB-15
Female (Blue)
KVM Ports 1 x USB Type B Female (White)
1 x HDB-15 Male (Blue)		 N/A
Power 1 x DC Jack 1 x DC Jack
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Switches N/A 1 x Knob
LEDs
Link 1 (Blue) 1 (Blue)
Power 1 (Green) 1 (Green)
Video 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m)		 1920 x 1200 @ 60 Hz (30 m);
1280 x 1024 @ 60 Hz (100 m)
Power Consumption DC5V:0.68W:7BTU DC5V:0.99W:9BTU
Environmental
Operating Temperature 0–50°C 0–50°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.10 x 5.74 x 2.40 cm
(3.58 x 2.26 x 0.94 in.)		 9.10 x 5.74 x 2.40 cm
(3.58 x 2.26 x 0.94 in.)

"
