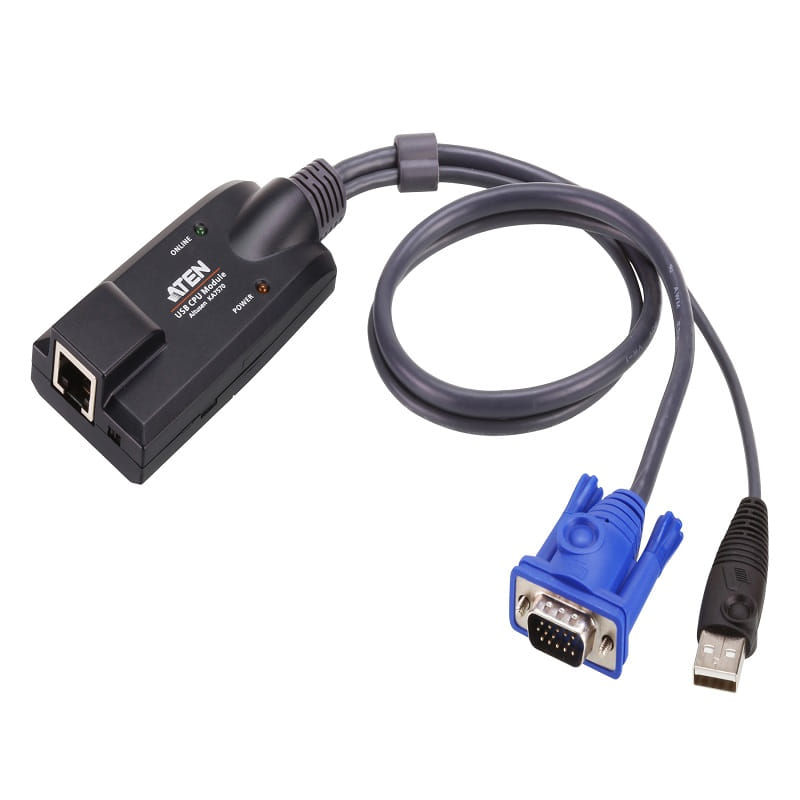

USB VGA KVM Adapter with Composite Video Support

USB VGA KVM Adapter with Composite Video Support

Product Code : KA7170

Brand Category : KVM Modules & Accessories


Description


"

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
  • Built in ASIC for greater reliability and compatibility
  • Hot Pluggable - add or remove computers without having to power down the switch
  • Compact size

    * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

"


Add to Query Cart PDF Download


Technical Specification


Connectors
Link 1 x RJ-45 Female
Computer 1 x USB Type A Male
1 x HDB-15 Male
LEDs
Online 1 (Green)
Power 1 (Orange)
Environmental
Operating Temperature 0-50°C
Storage Temperature -20–60°C
Physical Properties
Housing Plastic
Weight 0.14 kg ( 0.31 lb )
Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
(3.54 x 1.69 x 0.86 in.)
