USB VGA KVM DigiProcessor

Product Code : KG1900T

Brand Category : KVM over IP Switches

Description

Superior video quality – supports resolutions up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Distortion-free dynamic video performance up to 100m via a Cat 5e/6 cable
Virtual Media supports fast transmission speeds up to Read 265Mbps / Write 188Mbps

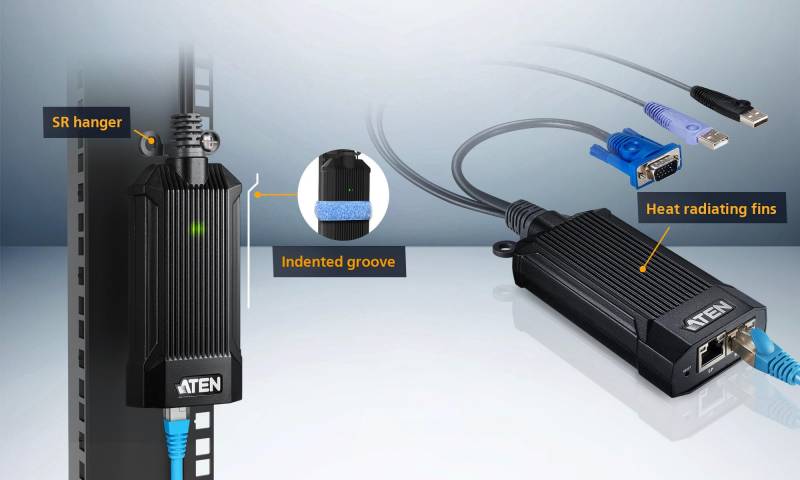

Space saving – 0U and compact design with SR mounting hanger for organized server rack installation
Light-weight aluminum die casting shroud – enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation
Bus-powered – no external power adapter required with ultra-low power consumption*
Firmware upgradable

Note: Make sure to connect both USB connectors to the server's USB ports to ensure sufficient power supply.

Technical Specification

Connectors
Link	1 x RJ-45 Female (KVM) 1 x RJ-45 Female (SP) (Reserved for future expansion)
Computer	2 x USB Type A Male 1 x HDB-15 Male
Switches
Reset	1 x Semi-recessed Pushbutton
LEDs
Link	1 (Green)- On: Active / Blinking: Transmit/Receive)
10/100/1000 Mbps	1 (Off / Orange / Green)
Power	1 (Green)
Power Consumption	DC5V:4.73W:22BTU
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–95% RH, Non-condensing
Physical Properties
Housing	Aluminum Die-casting Housing
Weight	0.30 kg ( 0.66 lb )
Dimensions (L x W x H)	12.20 x 5.80 x 2.58 cm (4.8 x 2.28 x 1.02 in.)
