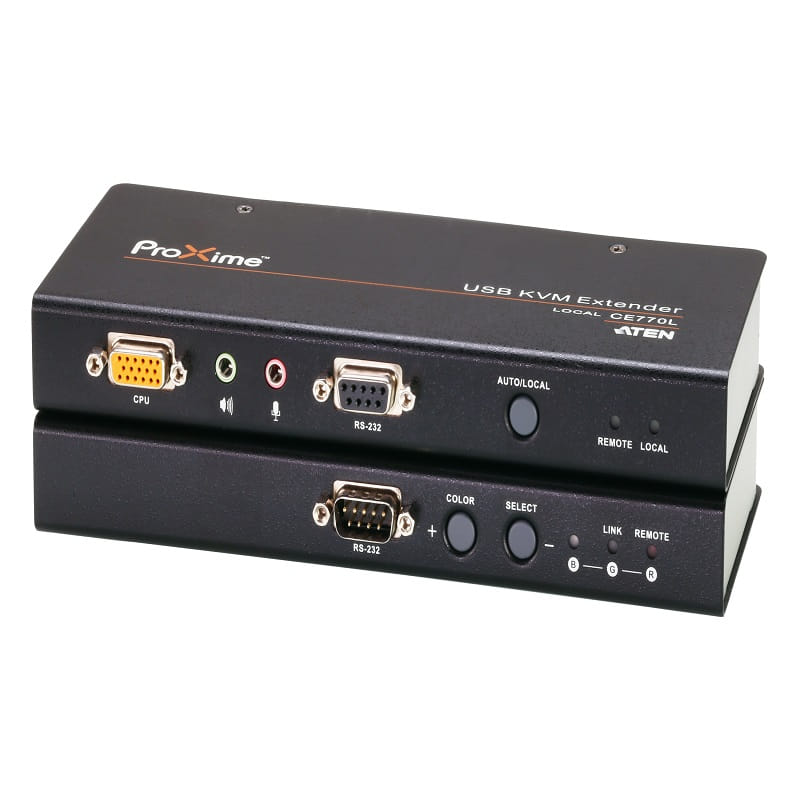

USB VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)

USB VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)

Product Code : CE770

Brand Category : KVM EXTENDER

Description

"

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Sun/Mac keyboard support and emulation*
  • Audio Enabled - supports stereo speakers and microphone
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
  • Superior Audio - no loss in audio quality at 300 m
  • Supports Wide Screen formats **
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install - no software required - connecting cables to the devices is all it takes

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers

    ** The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

"

Add to Query Cart PDF Download

Technical Specification

"

Function CE770L CE770RQ
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-17 Female (Yellow)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		 N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Local 1 (Green) N/A
Remote 1 (Green) N/A
B N/A 1 (Blue)
G N/A 1 (Orange/Green)
R N/A 1 (Red)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Color N/A 1 x Pushbutton
Select N/A 1 x Pushbutton
Emulation
Keyboard / Mouse USB USB
Video 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B		 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B
Power Consumption DC5.3V:2.74W:17BTU DC5.3V:4.54W:26BTU
Environmental
Operating Temperature 0 - 50°C 0 - 50°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.49 kg ( 1.08 lb ) 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)		 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)

"
