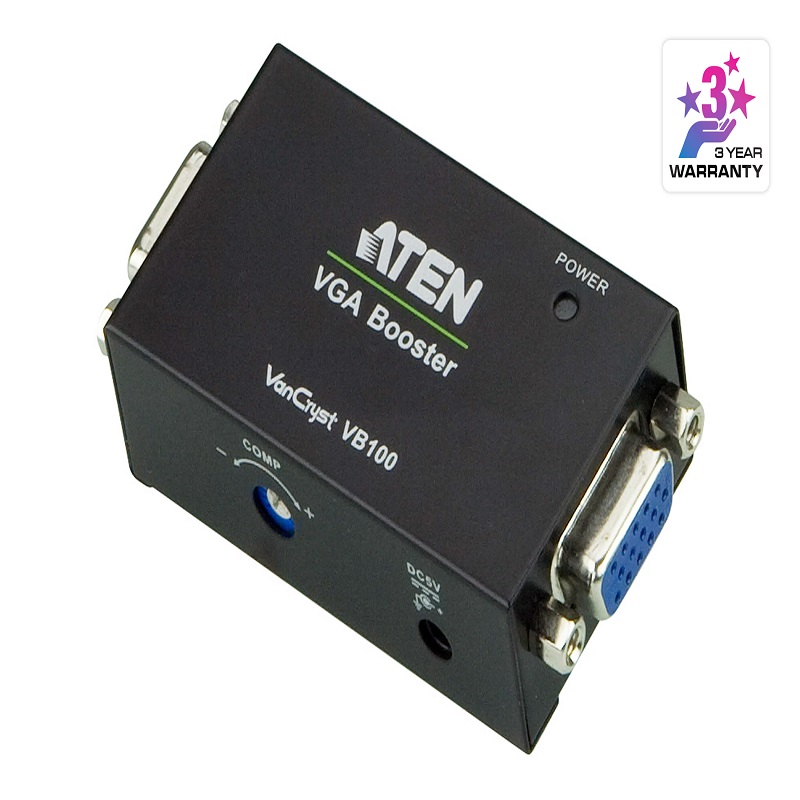

VGA Booster (1280 x 1024@70m)

VGA Booster (1280 x 1024@70m)

Product Code : VB100

Brand Category : Video Extenders

Description

  • Long distance transmission – up to 70 m
  • Adjustable video compensation – manually adjust signal strength to compensate for distance
  • Superior video quality – up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Compact housing
  • LED indication of power status and source device
  • Plug-and-play – no software installation required

Add to Query Cart PDF Download

Technical Specification

Video Input
Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ω
Video Output
Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ω
Video
Max. Bandwidth300 MHz
Max. Resolutions / DistanceUp to 1920 x 1200@30m; 1280 x 1024@70m
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:0.63W:3BTU
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.06 kg ( 0.13 lb )
Dimensions (L x W x H)3.53 x 6.88 x 2.06 cm
(1.39 x 2.71 x 0.81 in.)
Carton Lot10 pcs
