VGA EDID Emulator

VGA EDID Emulator

Product Code : 2A-130G

Brand Category : Video Converters

Description

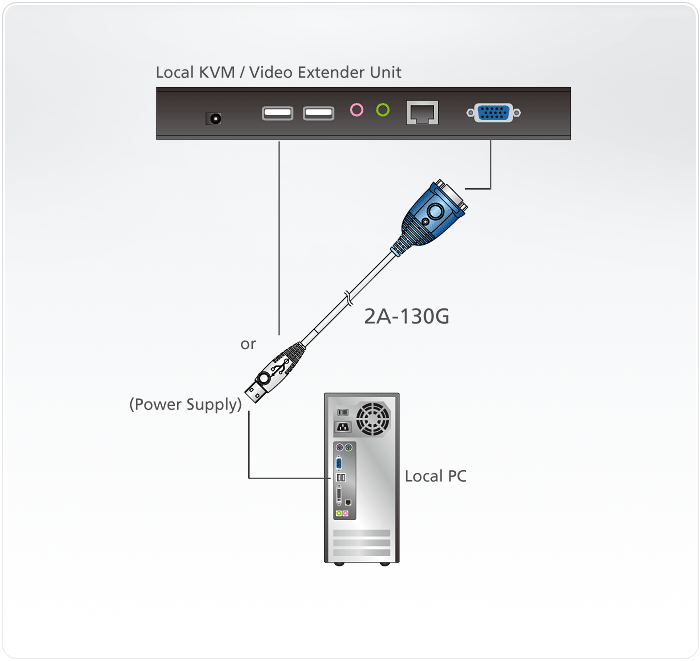

  • Subsitutes as a monitor at the site where the computer/video source is located
  • EDID built-in - Stores ATEN standard EDID information in device
  • ATEN standard EDID supports all popular resolutions
  • Superior video quality - up to 1920 x 1200@60Hz, 1366 x 768@60Hz
  • USB Powered - No need for an external power adapter
  • No software required - Eliminates incompatibility and installation issues; no need to confi gure
  • Compatible Extenders: CE774, CE775, CE700A, CE750, CE770, CE800B, CE350, CE370, CE250A, CE252, VE150A, VE170, VE200, VE300, VE500
  • Compatible Splitters (Connect to Port 1): VS132A/134A/138A, VS92A/94A/98A, VS82/84/88, VS0116, VS132, VS102, VS1204T, VS1208T, VS1504, VS1508
  • Supported Resolutions

Add to Query Cart PDF Download

Technical Specification

Connectors
Video1 x HDB-15 Male (Blue)
Power1 x USB Type A Male
LEDs
Power1 (Green)
Video1920 x 1200@60Hz
1366 x 768@60Hz
Cable Length0.35 m
Power ConsumptionDC5V:0.1W:1BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingPlastic
