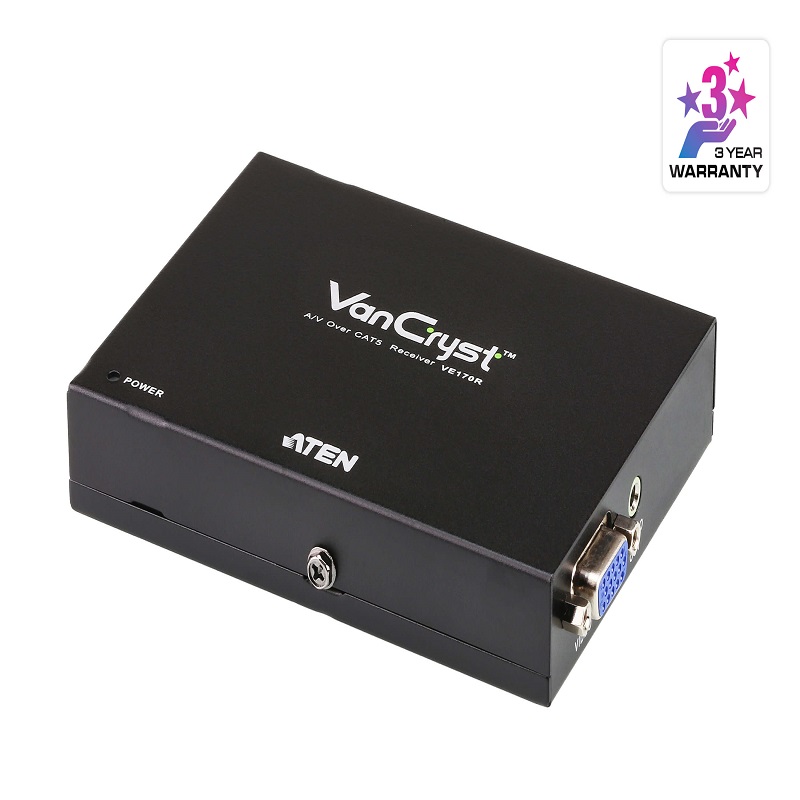

VGA/Audio Cat 5 Receiver with Deskew (1280 x 1024@300m)

Product Code : VE170RQ

Brand Category : Video Extenders

Description

Long distance transmission up to 300 m
Deskew Function – allows you to synchronize the time delay of RGB signals to compensate for distance
Superior video quality -
1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
Audio enabled (mono)

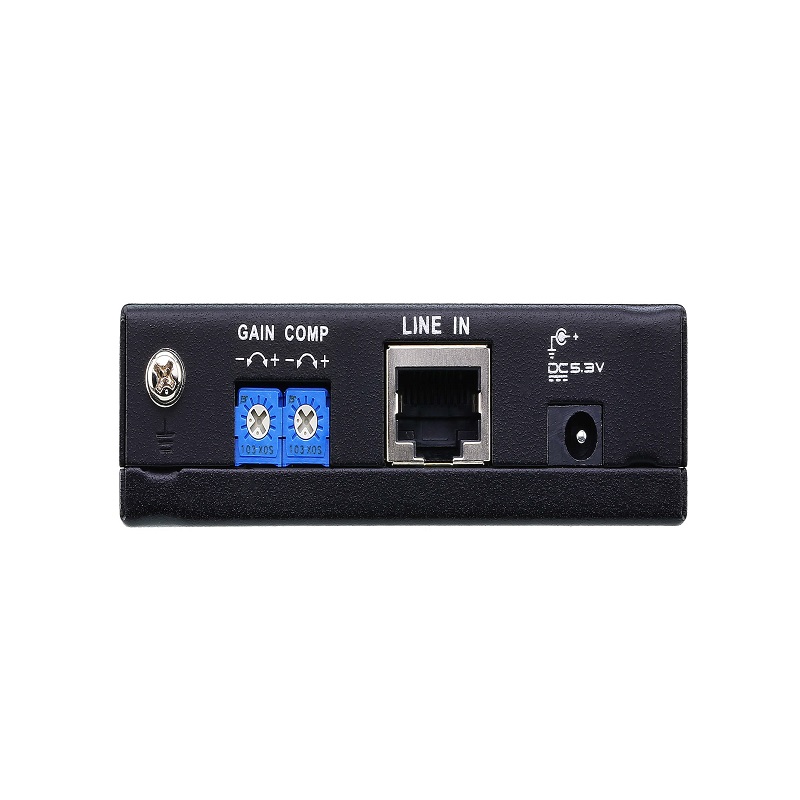

Adjustable gain/compensation control
Built-in 8KV/15KV ESD protection
Rack-mountable
Complies with VESA FDMI mount standard

Technical Specification

Video Output
Interfaces	1 x HDB-15 Female (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video
Max. Bandwidth	300 MHz
Max. Resolutions / Distance	Up to 1920 x 1200@150m; 1280 x 1024@300m
Audio
Output	1 x Mini Stereo Jack Female (Green)
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5.3V:5.24W:25BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.24 kg ( 0.53 lb )
Dimensions (L x W x H)	12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
Carton Lot	5 pcs
