Video Session Recording Software

Product Code : CCVSR

Brand Category : Management Software / Control Center

Description

Records user sessions from BIOS-level when users access ATEN KVM over IP switches and serial console servers locally* or remotely
Simultaneously records, streams and plays the operation of multiple KVM over IP Switches.
Supports high quality video recording – with video resolutions up to 1920 x 1200 with 24-bit color depth
Logs keystrokes, mouse clicks, and audio operations during video recording sessions
Proprietary video player with format and password-protected video export function for enhanced security
LiveView function to provide live-video surveillance for direct monitoring of operations and changes made on servers or the connected devices**

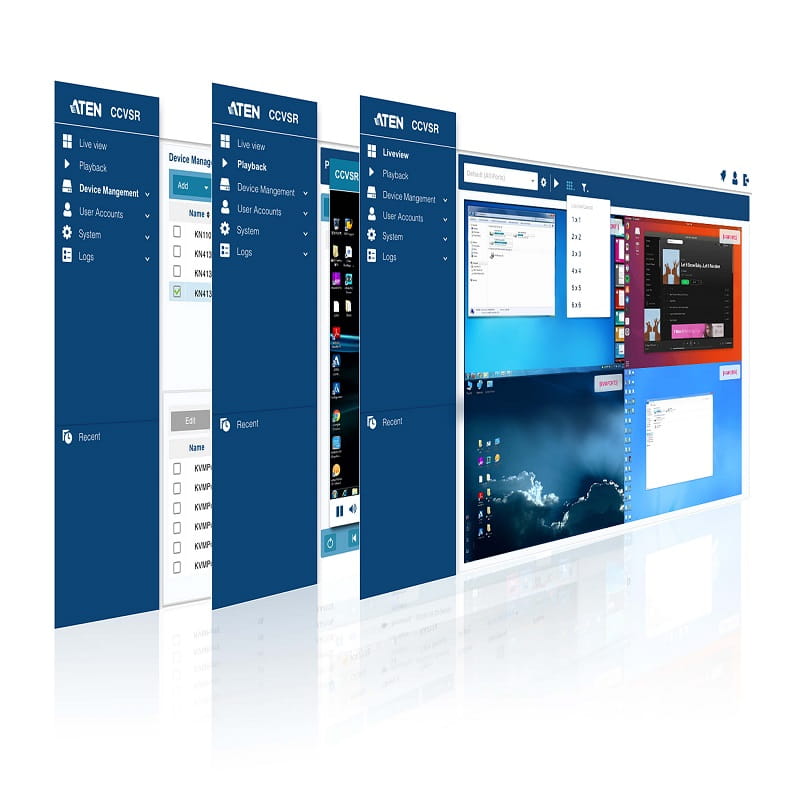

Intuitive User Interface with HTML5 to deliver friendly user experience
Continuous recording even without opening WinClient/JavaClient (CN9600, CN8600, and CN8000A only)
Access control to grant or restrict user access with IP & MAC address filter, and configurable failed login attempts and lockout
Configurable user and group permissions
TLS v1.2 data encryption (AES-256 bit supported) and RSA 2048-bit certificates to secure user logins from browser
Port level permissions – users can only view ports they have been authorized to access
Easily search through captured sessions for incident investigation
Advanced search with time, port name, and username for precise results
Flexibility in saving recorded videos in local hard drives, secondary CCVSR servers, or network attached storage (NAS) devices, or archive in Archive server
Supports up to 3 secondary CCVSR servers for storage expansion and service failover
Supports self-signed certificates and certificates signed from third-party authorities (CA)
Third-party remote authentication supports: RADIUS, LDAP, LDAPS and Active Directory
Centralized role-based (Super Administrator & User) policy for user access privilege control
System event notification via SMTP email, SNMP trap and Syslog support
Supports device level event logs

*Available on specific models only, please check specification.
**Up to 20 KVM sessions (Resolution =1920x1080, Text Mode = On, Bandwidth = 1G, Scenario = surveillance) can be recorded/streamed simultaneously when the hardware requirements are met (see the table below). Up to 64 KVM devices can be supported by one CCVSR.

Server Hardware Requirements	Client Hardware Requirements
CPU: Intel Xeon D-1527 4 cores 2.2 GHz or equivalent Memory: 8GB or more HDD: 4GB or more Network: 1Gbps	CPU: Intel Core i5-7600 4 cores 3.5 GHz or equivalent Memory: 6GB or more Network: 1Gbps

Technical Specification

Compatible Appliances
KVM over IP switches	Recordable via remote sessions or through the local console: KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN4124VA, KN4116VA, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, KN2116VB, KN4016VB, KN2124VB, KN4024VB, KN1132VB, KN2132VB, KN4032VB, KN8032VB, KN4064VB, KN8064VB, CN8600, CN8000A, CN9000, CN9600, CN9950, RCM101A, RCM101D, RCM464V, RCM816, RCM416, RCMDVI101, RCMVGA101, RCMDP101U, RCMDVI00AT, RCMDVI40AT, RCMDVI50T, RCMHD101U, RCMDVI00BT, RCMDVI40BT, KE6900AiT, KE6940AiT. * Please check CCVSR user manual for the limitation. Recordable via remote sessions: KL1108V, KL1116V, KN1108v, KN1116v, KN1132V, KN1108VA, KN1116VA, KN2116v, KN2124v, KN2132v, KN2116A, KN2132, KN2140v, KN4116, KN4116v, KN4124v, KN4132, KN4132v.
Serial console servers	SN9108CO, SN9116CO, SN0108CO, SN0116CO, SN0132CO, SN0148CO, SN9116, SN9108, SN0148, SN0132, SN0116A, SN0108A.
Authentication & Authorization	Supports local user accounts, LDAP, and RADIUS. Role-based (Super Administrator, Administrator, User) policy for access privilege control.
Security	IP and MAC address blocking. Configurable failed login attempts and lockout. Support certificate self-signed or signed from third-party authorities (CA). Secure web connection with TLS v1.2 and RSA 2048-bit certificates. Strong user password authentication. Configurable user session timeout. Configurable login page URL
Video
Supported Resolutions	Up to 4096 x 2160 Proprietary video format
Recording Storage	Recorded videos can be saved in: - Local storage - Secondary CCVSR server - Network shared folder Recorded videos can be archived to: - Archive server
Playback	Java player: - Password protected videos - Video export - Display recorded keystrokes and mouse clicks Advanced search with a variety of criteria
Notification	SMTP SNMP Trap (v1, v2c) Syslog
Logs	System logs. Device logs.
Service Failover	Primary/secondary architecture. 1 primary with maximum 3 secondary servers.
Supported OS	Windows: 7, 8, 10, server 2012, or server 2016 Linux: Ubuntu 16.04, CentOS 7, Fedora 24, Debian 8.8 *JAVA Runtime Environment (JRE) 1.7 Update 6 or higher is required in above OS.
Supported Browsers	Chrome, Firefox, Microsoft Edge.
Multilingual Support	English, 繁體中文, 简体中文, 日本語, 한국어.
Others	Online user management.
License
Basic (free)	1 Primary/1 Nodes.
USB License Options	CCVSR8 (8 Nodes). CCVSR16 (16 Nodes). CCVSR32 (32 Nodes). CCVSR64 (64 Nodes). CCVSR128 (128 Nodes). CCVSR256 (256 Nodes). CCVSR512 (512 Nodes). CCVSR1024 (1024 Nodes). CCVSR2048 (2048 Nodes).
System Add-ons	CCVSRN1 (Add-on 1 Node). CCVSRN8 (Add-on 8 Nodes). CCVSRN16 (Add-on 16 Nodes). CCVSRN32 (Add-on 32 Nodes). CCVSRN64 (Add-on 64 Nodes). CCVSRN128 (Add-on 128 Nodes). CCVSRN256 (Add-on 256 Nodes). CCVSRN512 (Add-on 512 Nodes). CCVSRN1024 (Add-on 1024 Nodes). CCVSRN2048 (Add-on 2048 Nodes). CCVSRAS1 (Archive Server License)
Minimum Hardware Requirements	To record & stream 20 video sessions: Server Hardware Requirements: - CPU: Intel Xeon D-1527 4 cores 2.2 GHz or equivalent - Memory: 8GB or more - HDD (for CCVSR): 4GB or more - Network: 1Gbps Client Hardware Requirements: - CPU: Intel Core i5-7600 4 cores 3.5 GHz or equivalent - Memory: 6GB or more - Network: 1Gbps
Package Contents	1x CCVSR USB License Key 1x Software CD 1x User Instructions
