WCM-20WT

WCM-20WT

Product Code : WCM-20WT

Brand Category : Low and medium powerS


Description

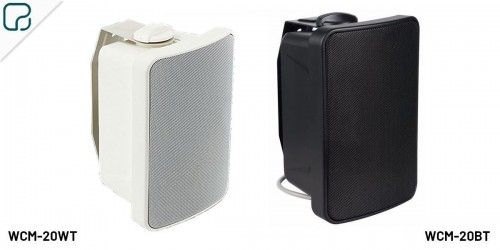

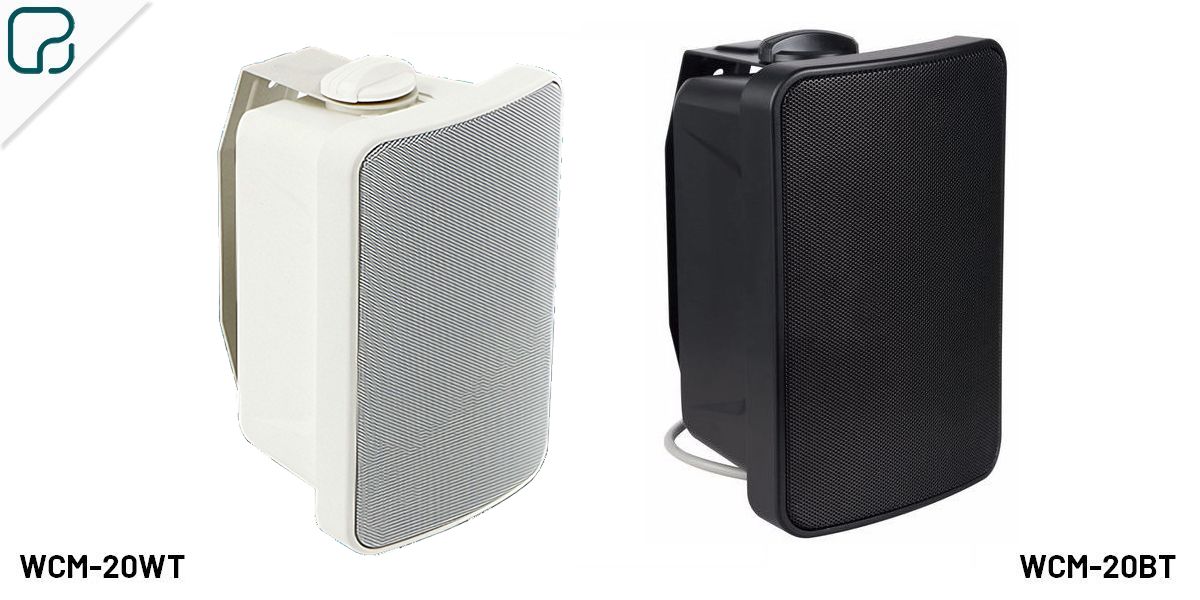

Two-way speaker for outdoors (IP55) with maximum power rating of 20 W and selectable, through wires connection, to 20, 10, 5 and 2.5 W. Also available the low impedance connection (8 ohm). 4" woofer for low and medium frequencies and 1" tweeter for high frequencies. ABS HIPS black, aluminium grille and adjustable bracket.


Add to Query Cart PDF Download


Technical Specification


Loudspeaker

woofer 4” + twitter 1”

Rated power (RMS)

20 W

Power selection (100 V)

20, 10, 5 and 2.5 W

Low impedance

8 ohm

Frequency response

90 ~ 20,000 Hz

SPL 1 m, 1 kHz

88 dB (1 W) / 101 dB (20 W)

Protection

IP55 (IEC-529)

Dimensions (mm)

158 x 129 x 238

Weight

2.38 kg

Finish

Enclosure: black ABS HIPS Grille: Aluminium
