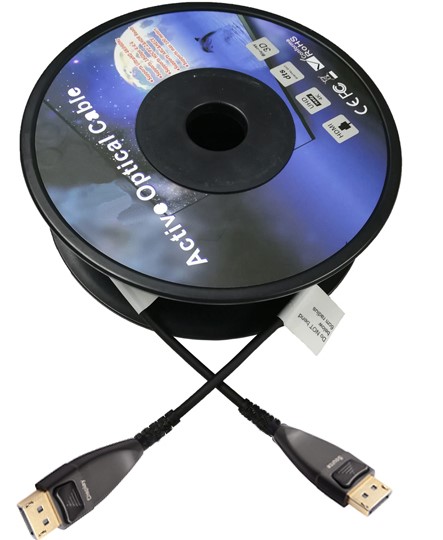

A DP 1.4 AOC Cable (DisplayPort 1.4 Active Optical Cable) is designed to carry DisplayPort signals over long distances with high performance, using optical fiber technology to transmit data with minimal signal loss. It supports advanced video resolutions, high bandwidth, and features that make it ideal for professional applications such as gaming, video production, and high-end displays. Below is a detailed breakdown:
1. DisplayPort 1.4 Overview:
DisplayPort 1.4 (DP 1.4) is a high-performance interface standard developed by VESA (Video Electronics Standards Association). It supports:
- 8K Resolution: Up to 7680x4320 at 60Hz or 4K at 120Hz, enabling ultra-high-definition visuals.
- HDR (High Dynamic Range): DP 1.4 supports HDR10, which enhances image contrast and color depth for lifelike visuals.
- Bandwidth: Up to 32.4 Gbps with HBR3 (High Bit Rate 3), which enables higher refresh rates and deeper color depths.
- DSC (Display Stream Compression): Supports Display Stream Compression 1.2, allowing 8K and 4K resolutions at higher frame rates without noticeable visual loss.
- Multiple Display Support: DP 1.4 can daisy-chain multiple displays via Multi-Stream Transport (MST).
2. Active Optical Cable (AOC) Technology:
An AOC is a cable that converts electrical DisplayPort signals into optical signals for transmission over fiber optics. At the receiving end, it converts them back into electrical signals. This conversion allows for:
- Long-Distance Signal Transmission: AOC cables can transmit DisplayPort signals over distances up to 100 meters or more, far beyond the typical 3-5 meter limit of standard copper DP cables.
- Reduced Signal Degradation: Unlike copper cables, AOCs do not suffer from significant signal attenuation, even over long distances.
- Immunity to Electromagnetic Interference (EMI): Optical signals are not affected by EMI, making AOC cables highly reliable in environments with high interference, such as industrial settings or data centers.
- Thinner and Lighter Cables: Optical fiber is much lighter and thinner than copper wire, allowing for easier handling, installation, and flexibility in tight spaces.
3. Key Features of DP 1.4 AOC Cables:
- High Bandwidth: With a maximum bandwidth of 32.4 Gbps, DP 1.4 AOCs can support high resolutions and refresh rates, such as 4K@120Hz and 8K@60Hz.
- HDR and Deep Color Support: Full support for 10-bit and 12-bit color, providing richer visuals with better color accuracy.
- Daisy-Chaining Support: AOCs enable Multi-Stream Transport (MST), allowing you to connect multiple displays to a single DisplayPort output (daisy-chaining), especially useful for professional setups like video editing or trading floors.
- 8K Support: Enables 8K resolution (7680x4320) at 60Hz with DSC or 4K (3840x2160) at 120Hz without DSC, perfect for high-end gaming, virtual reality, or professional video production.
- Plug-and-Play: No additional drivers or external power sources are required; the cable works by drawing power from the connected devices.
4. Use Cases for DP 1.4 AOC Cables:
- Gaming: High-performance gaming setups that require 4K@120Hz or 8K@60Hz resolution for immersive, lag-free gaming experiences. The high refresh rates are critical for smooth gameplay in competitive environments.
- Video Production: Ideal for content creators working with 4K or 8K video editing, color grading, or post-production work, where high resolution and color accuracy are essential.
- Medical Imaging: Used in medical setups where high-definition monitors are used for detailed imaging, as the long-distance transmission without signal loss is crucial in larger setups.
- VR and Simulation Systems: Virtual Reality headsets and simulators benefit from the high resolution and refresh rates provided by DP 1.4, ensuring a smooth and immersive experience.
- Home Theater Systems: For users seeking a home theater setup with 8K TVs or high-resolution projectors, a DP 1.4 AOC allows long-distance runs between a media player and display without degrading video quality.
5. Technical Specifications:
- Bandwidth: Up to 32.4 Gbps (HBR3).
- Resolution Support: 8K@60Hz with DSC, 4K@120Hz, 1440p@240Hz, or 1080p at even higher frame rates.
- HDR: Supports HDR10 and other dynamic HDR standards, ensuring vivid color and contrast.
- Display Stream Compression (DSC): Ensures smooth transmission of 8K or 4K video without losing visual quality, even at high refresh rates.
- Cable Lengths: Commonly available from 10 meters up to 100 meters or more, allowing for versatile installation options in large spaces.
- Connector Type: Standard DisplayPort (DP) connectors (20 pins).
- Cable Material: Optical fiber core with a durable and flexible outer jacket for better durability and ease of installation.
6. Advantages of DP 1.4 AOC Over Traditional Copper Cables:
- Longer Reach: AOC cables can span distances up to 100 meters, far surpassing the range of typical copper DisplayPort cables.
- No Signal Loss: Optical transmission prevents the signal degradation seen in long copper cables, ensuring that video and audio quality remain intact.
- EMI Resistance: Optical cables are resistant to electromagnetic interference, making them ideal for use in environments like hospitals, broadcast facilities, or industrial installations.
- Lightweight and Flexible: AOCs are thinner and more flexible than copper cables, making them easier to install in tight spaces or around sharp bends.
7. Backward Compatibility:
DP 1.4 AOCs are backward compatible with earlier DisplayPort versions (such as DP 1.2), so they can be used with older devices that may not support the latest DP 1.4 features. However, the cable will only operate at the maximum capacity of the device’s DisplayPort version.
8. Comparison to HDMI AOC:
- Higher Bandwidth: DP 1.4 has a higher data transmission capacity compared to HDMI 2.0 or even HDMI 2.1, making it more suited for professional applications with 8K video or multiple displays.
- Multi-Stream Transport (MST): DP 1.4 supports the daisy-chaining of multiple monitors from a single port, which is not available in HDMI.
- More Flexible Resolutions: DP 1.4 supports various resolution and refresh rate combinations, especially in gaming and VR setups, whereas HDMI is more commonly used for home entertainment systems.
DP 1.4 AOC Cable is the ideal solution for transmitting high-bandwidth, high-resolution DisplayPort signals over long distances with minimal interference and signal loss. It is perfect for demanding applications such as professional gaming, video editing, and large-scale display setups that require 4K or 8K video with high refresh rates and HDR support.
