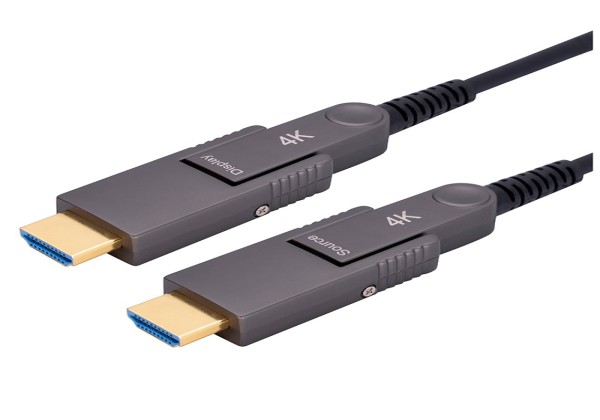

An HDMI 2.0 Detachable A-D AOC (Active Optical Cable) is a specialized cable solution designed for high-performance, long-distance transmission of HDMI signals. It combines the benefits of detachable connectors with the advanced technology of Active Optical Cables (AOC), allowing users to extend the reach of their HDMI 2.0 signals while maintaining signal integrity and performance. Here’s a detailed breakdown:
1. HDMI 2.0 Standard Overview:
HDMI 2.0, also known as HDMI UHD, is a version of the HDMI standard that supports:
- 4K UHD Resolution: Up to 3840 x 2160 pixels at 60Hz.
- High Dynamic Range (HDR): Enhanced color depth and contrast for better video quality.
- Bandwidth: Up to 18 Gbps, which supports higher frame rates and color depth.
- Color Formats: 4:4:4 chroma subsampling, 10-bit, and 12-bit color for rich and vibrant video playback.
- Audio Support: Enhanced multi-channel audio, including support for Dolby Atmos and DTS
.
2. Active Optical Cable (AOC) Technology:
Unlike traditional copper HDMI cables, AOCs convert electrical signals into optical signals, which are then transmitted over fiber optic strands. At the receiving end, the optical signals are converted back to electrical HDMI signals. This offers several advantages:
- Long Distance Transmission: Optical cables can carry HDMI signals over much greater distances (up to 100 meters or more) without signal degradation or loss.
- Thin and Lightweight: AOCs are typically lighter and more flexible than copper cables, making them easier to install, especially in confined spaces.
- Electromagnetic Interference (EMI) Resistance: Optical signals are immune to electromagnetic interference, ensuring consistent performance in environments with high EMI, such as data centers or industrial spaces.
3. Detachable A-D Design (Type A to Type D):
- HDMI Type A Connector: The standard HDMI connector, commonly used on TVs, monitors, gaming consoles, and Blu-ray players.
- HDMI Type D Connector (Micro HDMI): A smaller version of the HDMI connector, designed for portable devices such as cameras, smartphones, and tablets.
- Detachable Connectors: The detachable design allows the cable to have interchangeable heads, so users can switch between HDMI Type A and Type D connectors depending on their devices.
- Flexibility: Detachable connectors make the cable versatile and adaptable for different applications, whether connecting a laptop to a projector or a smartphone to a display.
- Modular Construction: With the ability to detach the connectors, the cable is easier to install through tight spaces and conduits.
4. Use Cases for HDMI 2.0 Detachable A-D AOC:
- Home Theater Systems: For connecting high-definition AV equipment to displays over long distances without sacrificing image quality.
- Professional AV Installations: Useful in boardrooms, auditoriums, and conference rooms where long cable runs are required.
- Digital Signage: For running HDMI connections across large public spaces, such as malls, airports, and stadiums.
- Mobile Device Connectivity: For connecting cameras, camcorders, and mobile devices (Type D) to larger displays (Type A) for viewing or presentation purposes.
- Gaming and VR Applications: For ensuring high bandwidth, low-latency transmission in gaming setups or VR environments.
5. Key Features:
- High Performance: Supports 4K UHD at 60Hz, HDR, and HDCP 2.2, ensuring compatibility with the latest HDMI content.
- Long Cable Runs: Thanks to optical technology, these cables can maintain signal integrity over much longer distances compared to traditional HDMI copper cables.
- Plug-and-Play: No external power source is needed, as the cable is powered by the connected devices.
- Durability: Fiber optic cables are generally more resistant to wear and tear than copper cables, and detachable connectors add extra durability by reducing strain on the cable ends.
- Compatibility: Fully backward compatible with HDMI 1.4 devices and earlier versions.
6. Technical Specifications:
- Bandwidth: 18 Gbps (supports all HDMI 2.0 features).
- Resolution: 4K@60Hz with 4:4:4 color format, also supports 1080p, 720p, and other lower resolutions.
- HDR Support: Yes (HDR10, Dolby Vision).
- Audio: Supports up to 32 audio channels, ARC (Audio Return Channel), and multi-channel audio formats like Dolby Atmos and DTS
.
- Connector Types: Type A (standard HDMI) and Type D (Micro HDMI).
- Cable Lengths: Typically available in lengths from 5 meters up to 100 meters or more.
- Material: Fiber optic core with reinforced outer jacket for durability.
7. Advantages Over Traditional HDMI Cables:
- Signal Stability over Long Distances: Traditional copper cables struggle with signal degradation over distances longer than 10 meters, while AOC cables can extend this to over 100 meters.
- Improved Flexibility: The thinner and lighter design of optical cables makes them easier to handle, especially in complex installations.
- EMI Resistance: AOCs are highly resistant to electromagnetic interference, making them ideal for use in environments where EMI could be an issue, such as hospitals or industrial installations.
The HDMI 2.0 Detachable A-D AOC is an excellent solution for high-performance, long-distance HDMI connections, offering flexibility with its detachable connectors and reliability through active optical technology. Whether for home entertainment, professional AV, or mobile device connectivity, this cable delivers the bandwidth and performance necessary for modern high-definition audio and video setups.
