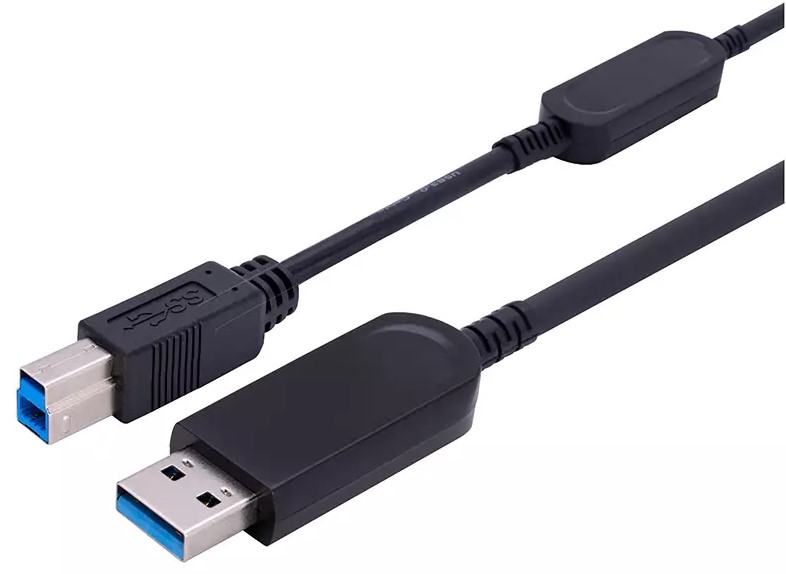

A USB 3.1 Type A (Male) to Type B (Male) Active Optical Cable (AOC) is a specialized cable designed for long-distance data transmission between devices that use these two USB connector types. Using active optical technology, the cable is capable of maintaining high-speed data transfer over extended distances, which is especially useful in environments where traditional copper cables would suffer from signal loss or interference. Below is a detailed explanation of its features and uses:
1. USB 3.1 Overview:
USB 3.1 is a USB standard that comes in two generations:
- USB 3.1 Gen1: This is essentially the rebranding of USB 3.0 and supports data transfer speeds up to 5 Gbps.
- USB 3.1 Gen2: Supports data transfer speeds up to 10 Gbps, which is double that of USB 3.1 Gen1, making it ideal for high-performance data transmission.
The USB 3.1 standard is also backward compatible with previous versions of USB, including USB 2.0 and 1.1, although the performance is limited to the lower standards when connected to legacy devices.
2. Type A and Type B Connectors:
- Type A (Male): This is the standard flat, rectangular USB connector found on most computers, hubs, and other host devices.
- Type B (Male): This connector is typically found on peripheral devices such as printers, scanners, and some external storage devices. It has a square shape with a slight bevel on the top corners.
3. Active Optical Cable (AOC) Technology:
Active Optical Cables use optical fiber to transmit data signals rather than traditional copper wires. This offers several key advantages:
- Extended Range: AOCs can maintain high-speed data transmission over much longer distances than copper cables, typically up to 100 meters or more, compared to the typical 3-meter limit of copper USB 3.1 cables.
- Signal Integrity: Optical transmission prevents the signal degradation that occurs with copper cables over longer distances, ensuring reliable data transfer even in extended setups.
- Immunity to Electromagnetic Interference (EMI): Optical fiber is not susceptible to EMI, making these cables ideal for use in environments where high levels of interference would affect traditional copper cables (e.g., industrial settings, medical facilities).
- Lightweight and Flexible: AOCs are much thinner, lighter, and more flexible than copper cables, making them easier to install and manage, especially in complex or confined spaces.
4. Key Features of USB 3.1 Type A to Type B AOC Cable:
- High-Speed Data Transfer: Supports data transfer rates of up to 10 Gbps (USB 3.1 Gen2), allowing for fast transmission of large files, high-resolution video, and backups between devices.
- Extended Distance Capability: Unlike traditional copper USB cables, which can lose signal integrity over long distances, AOCs can extend up to 100 meters or more while maintaining full performance.
- Backward Compatibility: The cable is compatible with USB 2.0 and USB 1.1 devices, although the data transfer rate will be limited by the slower standard when used with these devices.
- Plug-and-Play: No external power source or drivers are required; the cable draws power directly from the connected devices.
- Durability and Flexibility: Optical cables are generally more durable than copper cables, especially over long distances, and are less prone to wear and tear. They are also more flexible, making them easier to route and manage.
5. Use Cases for USB 3.1 Type A to Type B AOC:
- Large Office and Industrial Settings: In environments where long-distance connections between a computer (Type A) and a peripheral (Type B, such as a printer or scanner) are necessary, this cable ensures consistent performance without signal degradation.
- Media Production: In video or audio production studios where high-speed, long-distance connections to external storage or audio interfaces are required, this cable can handle large file transfers with ease.
- Home Office or Enterprise Use: Ideal for connecting computers to large-format printers or scanners located far away, such as in a different room or across the office.
- Data Centers: In data centers where long-distance peripheral connections are needed, AOCs provide reliable data transfer without the performance limitations of copper.
- Medical Imaging: For medical equipment that requires high-speed data transfer over long distances in EMI-prone environments, such as MRI machines or imaging devices, optical cables ensure signal integrity.
6. Technical Specifications:
- Data Transfer Rate: Supports up to 10 Gbps (USB 3.1 Gen2) for fast file transfers, peripheral communication, and other high-bandwidth applications.
- Cable Length: Available in lengths typically ranging from 10 meters to 100 meters or more, depending on the application.
- Connectors:
- Type A Male: Standard rectangular USB plug for connecting to host devices like computers, laptops, or USB hubs.
- Type B Male: Square-shaped plug typically used for peripheral devices such as printers, scanners, or external hard drives.
- Cable Material: Features an optical fiber core with a durable outer jacket that provides flexibility and protection against environmental wear and tear.
- Backward Compatibility: Supports older USB standards (USB 2.0 and 1.1) but will operate at slower speeds when connected to these devices.
- EMI Resistance: Immune to electromagnetic interference, ensuring stable and reliable data transmission even in challenging environments.
7. Advantages of USB 3.1 Type A to Type B AOC Over Copper Cables:
- Longer Reach: Copper cables can only extend up to about 3 meters for high-speed applications, while AOCs can reach distances of 100 meters or more.
- No Signal Loss: Optical transmission ensures that data is transmitted without loss of signal integrity, which is a common issue with copper cables over long distances.
- Enhanced Flexibility and Durability: AOCs are more flexible and lighter than copper cables, making them easier to install and more durable over long distances.
- No EMI Interference: The optical nature of AOCs makes them immune to electromagnetic interference, making them ideal for use in environments where copper cables may struggle with performance issues.
8. Limitations and Considerations:
- Power Delivery: Unlike some other USB Type-C or Type-A/B cables, AOCs do not typically support high levels of power delivery due to the nature of optical fibers. If power delivery is needed, separate power cables may be required.
- Price: AOCs are generally more expensive than standard copper cables due to the complexity of optical transmission technology.
- Fragility: While more durable than copper cables in some respects, optical cables can be more fragile when bent sharply or mishandled, as excessive bending can damage the fibers.
9. Comparison with USB 3.2 Type-C AOCs:
- Connector Types: USB 3.1 Type A to Type B AOCs cater to legacy devices with Type A and Type B ports, while USB 3.2 Type-C AOCs are used in newer devices that support the USB Type-C standard.
- Data Rates: Both USB 3.1 and USB 3.2 Gen 2 cables offer up to 10 Gbps data transfer speeds, but USB 3.2 cables often support additional features such as DisplayPort Alternate Mode and Power Delivery, depending on the device and the specific Type-C AOC.
10. Conclusion:
The USB 3.1 Type A (Male) to Type B (Male) AOC Cable is an excellent solution for anyone needing high-speed, long-distance data transfer between host devices and peripherals using these USB connectors. It’s especially useful in environments where electromagnetic interference is a concern, or where longer cable runs are required, such as industrial setups, large office spaces, or specialized media production facilities. The combination of high data transfer rates, extended cable length, and signal reliability makes this cable a superior alternative to traditional copper USB cables for demanding applications.
