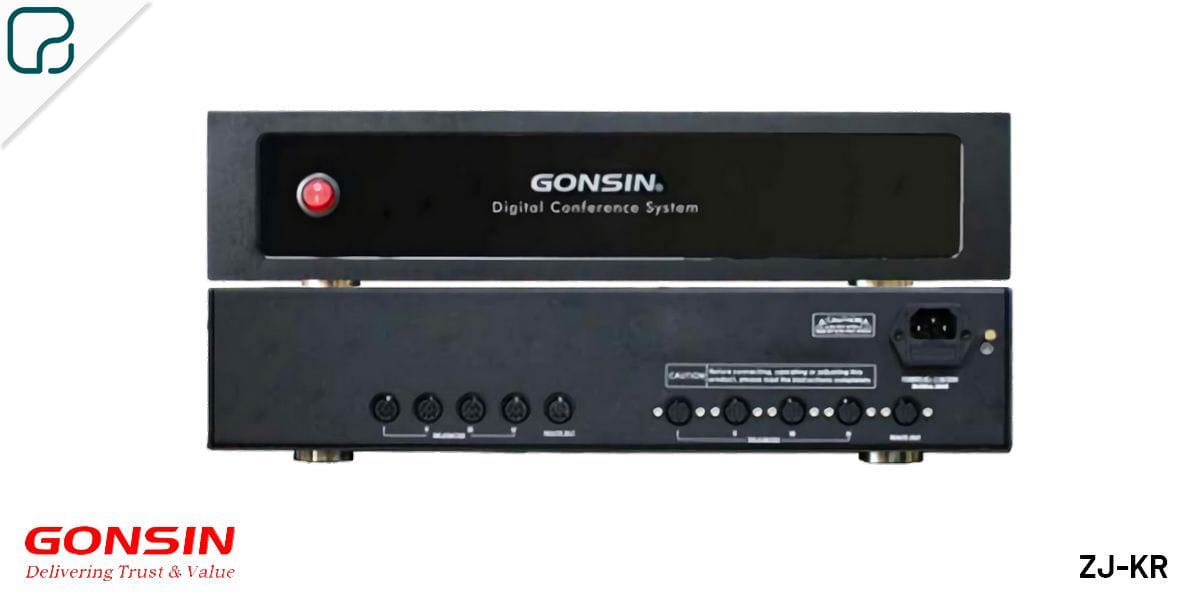

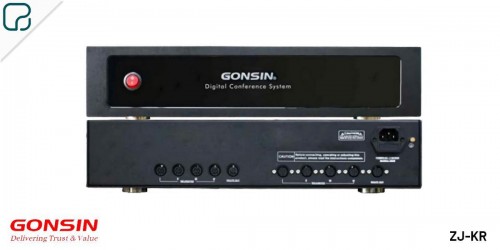

ZJ-KR

Power Supply

100 ~ 220 V AC, 50/60 Hz

Display

OLED (61 x 37 mm)

VOX sensitivity

H/M/L (76 dB / 80 dB / 82 dB)

Consumption (max)

300 W

THD

< 0.05%

SNR

> 96 dB(A)

Frequency response

20 Hz ~ 20 KHz

Dynamic range

> 94 dB

External audio input

0.775 V, PHOENIX terminal

Audio output

1 x RCA 20 dBu unbalanced

1 x XLR 20 dBu balanced

Recording Audio output

USB, 0.8 M/m

Capacity

60 - 70 units

Max system capacity*

4096

PC communication methods

TCP/IP

Active delegate microphone limit

1/2/3/4

Operating temperature

-0 ~ 45º C

Installation

desktop or 19” rack mounting

Dimensions (W x D x H)

485 mm × 325 mm × 90 mm

Weight

7.6 Kg
